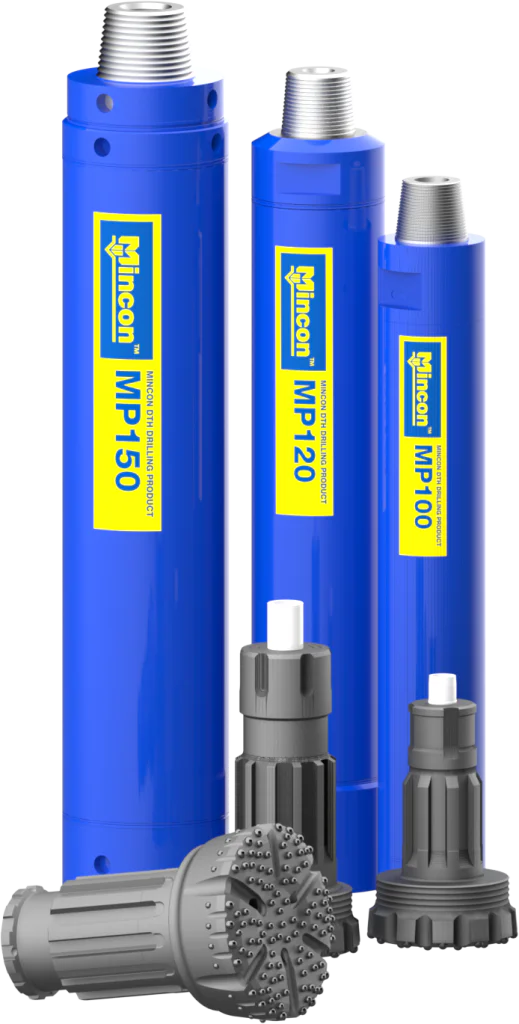

10-15-inch DTH Hammers
The MP-series is our comprehensive range of next-generation DTH hammers. The MP100, MP120, and MP150 hammers can be used for hole sizes between 254 mm and 457 mm (10” – 18”). All MP-series DTH hammers offer unparalleled versatility and compatibility, with supports for industry-standard shanks as well as Mincon-designed shanks. Additionally, MP-series hammers are available in variants that support drill bits without a footvalve (also known as tubeless drill bits). All models in the next-generation MP-series of DTH hammers are manufactured at our state-of-the-art facilities in Ireland and Finland, ensuring consistently high-quality parts and material properties, for supreme reliability, longevity, and efficiency. When used in conjunction with other products in our range, customers will benefit from all the next-generation Mincon drilling technologies that improve penetration rates without compromising on efficiency, while reducing emissions and drilling costs.
-
Drill Bit Sizes
254 mm – 457 mm (10” – 18”)
-
Thread Connection
6⅝” API Reg / 8⅝” API Reg
-
Hammer OD
219 mm – 340 mm (8.6” – 13.4”)
-
Shank Support
SD10, MC100, QL120, SD12, MC120, N125, MC150
Specifications
| Hammer name | Shank support | Foot valve | Standard backhead thread / type | Hammer OD | Hammer length (shoulder to shoulder) | Minimum bit size | Maximum bit size | Hammer weight | Piston weight | Links |
|---|---|---|---|---|---|---|---|---|---|---|
| MP100-SD | SD10 | Yes | 6 5/8″ API | 219 mm (8.6") | 1,360 mm (53.5") | 254 mm (10″) | 305 mm (12") | 295 kg (650.4 lb) | 77.8 kg (171.5 lb) | Data sheet |
| MP100-MC | MC100 | No | 6 5/8″ API | 219 mm (8.6") | 1,380 mm (54.3") | 254 mm (10″) | 305 mm (12") | 309 kg (681.2 lb) | 79.3 kg (174.8 lb) | Data sheet |
| MP120-QL | QL120 | Yes | 6 5/8″ API | 273 mm (10.7") | 1,454 mm (57.3") | 305 mm (12") | 381 mm (15″) | 457 kg (1007.5 lb) | 138.5 kg (305.3 lb) | Data sheet |
| MP120-SD | SD12 | Yes | 6 5/8″ API | 273 mm (10.7") | 1,431 mm (56.3") | 305 mm (12") | 381 mm (15″) | 460 kg (1014.1 lb) | 130.8 kg (288.4 lb) | Data sheet |
| MP120-MC | MP120-MC | No | 6 5/8″ API | 273 mm (10.7") | 1,454 mm (57.3") | 305 mm (12") | 381 mm (15″) | 468 kg (1031.8 lb) | 468 kg (1031.8 lb) | Data sheet |
| MP120-N125 | N125 | Yes | 6 5/8″ API | 273 mm (10.7") | 1451 mm (57.1″) | 305 mm (12") | 381 mm (15″) | 453 kg (998.7 lb) | 138.5 kg (305.3 lb) | Data sheet |
| MP150-MC BLANK | MC150 | No | BLANK | 340 mm (13.4″) | 1,572 mm (61.9") | 381 mm (15") | 457 mm (18″) | 752 kg (1,658 lbs) | 206 kg (454 lbs) | Data sheet |
| MP150-MC | MC150 | No | 8 5/8" API | 340 mm (13.4") | 1,662 mm (65.4") | 381 mm (15") | 457 mm (18") | 857 kg (1,889 lbs) | 206 kg (454 lbs) | Data sheet |
FOOTVALVE VS NO FOOTVALVE
We offer DTH drill hammers with support for bits with and without footvalves, depending on the application at hand and customer requirements. Hammers that support bits with footvalves are designed to accommodate this insert. All hammers with an MQ and MC designation only support drill bits without a footvalve. Mincon hammers are available with support for most major third-party shanks, as well as Mincon’s own MC-style shank which lacks a footvalve.
-
