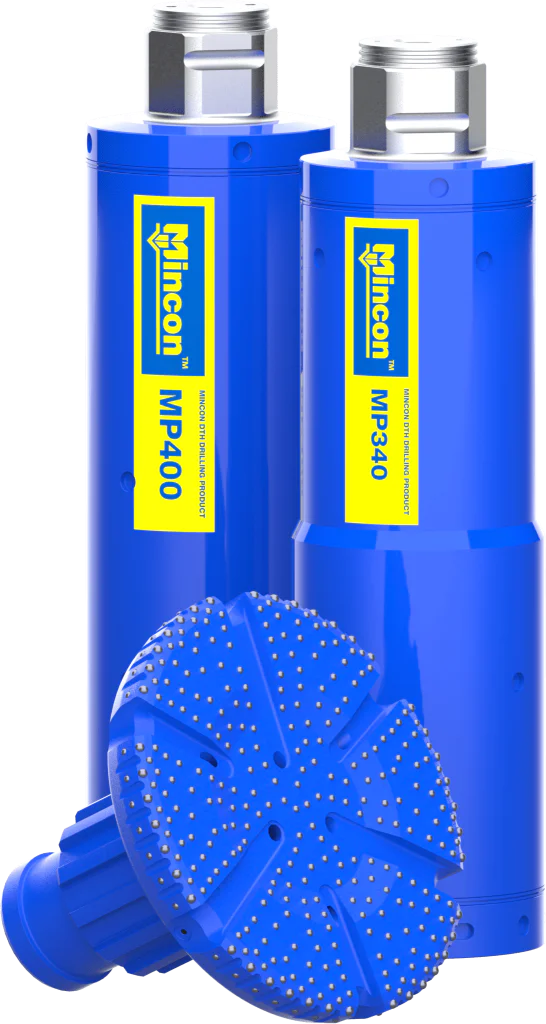

30-40-inch DTH Hammers
The MP-series is our comprehensive range of next-generation DTH hammers. The MP340 and MP400 large-diameter hammers can be used for hole sizes between 850 mm and 1,524 mm (33” – 60”). All MP-series DTH hammers offer unparalleled versatility and compatibility, with supports for industry-standard shanks as well as Mincon-designed shanks. Additionally, MP-series hammers are available in variants that support drill bits without a footvalve (also known as tubeless drill bits). All models in the next-generation MP-series of DTH hammers are manufactured at our state-of-the-art facilities in Ireland and Finland, ensuring consistently high-quality parts and material properties, for supreme reliability, longevity, and efficiency. When used in conjunction with other products in our range, customers will benefit from all the next-generation Mincon drilling technologies that improve penetration rates without compromising on efficiency, while reducing emissions and drilling costs.
-
Drill Bit Sizes
850 mm – 1,524 mm (33” – 60”)
-
Thread Connections
HEX 370
-
Hammer OD
750 mm (29.5”)
-
Shank support
MF34
Specifications
| Hammer name | Shank support | Foot valve | Standard backhead thread / type | Hammer OD | Hammer length (shoulder to shoulder) | Minimum bit size | Maximum bit size | Hammer weight | Piston weight | Links |
|---|---|---|---|---|---|---|---|---|---|---|
| MP340 | MF34 | No | HEX 370 | 750 mm (29.6″) | 2,336 mm (92″) | 850 mm (33.5″) | 1,220 mm (48.1″) | 5,807 kg (12,802 lbs) | 1,050 kg (2,315 lbs) | Data sheet |
| MP400 | MF34 | No | HEX 370 | 750 mm (29.6″) | 2,336 mm (92″) | 1,000 mm (39.4″) | 1,524 mm (60″) | 6,048 kg (13,334 lbs) | 1,500 kg (3,307 lb) | Data sheet |
-
