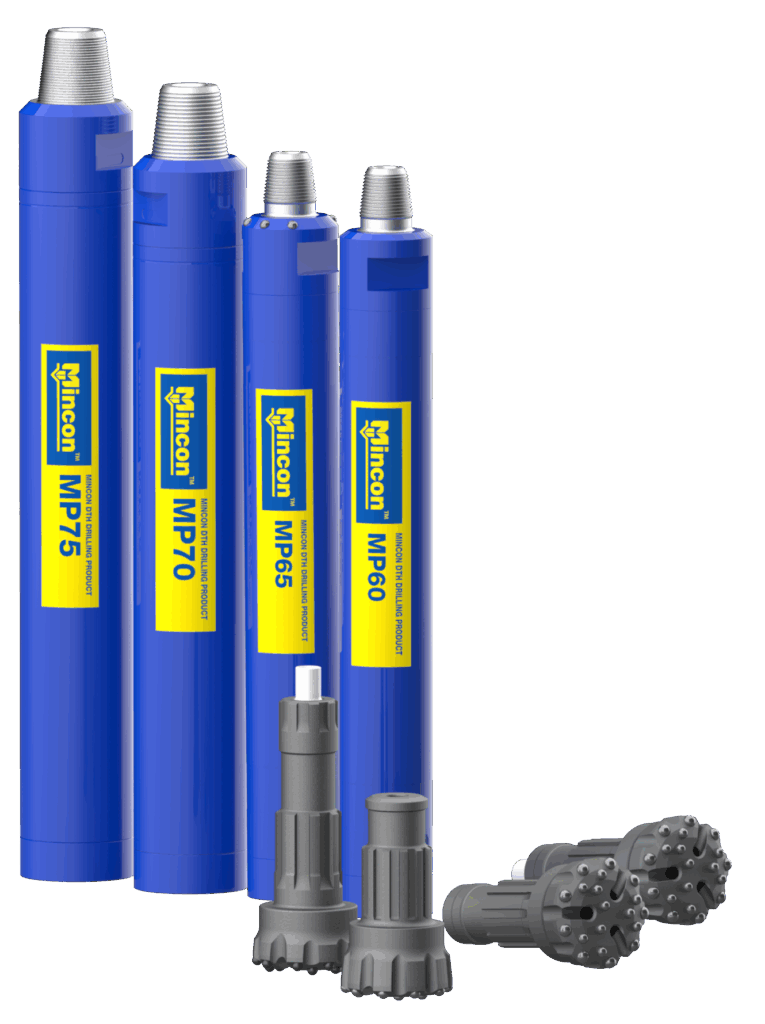

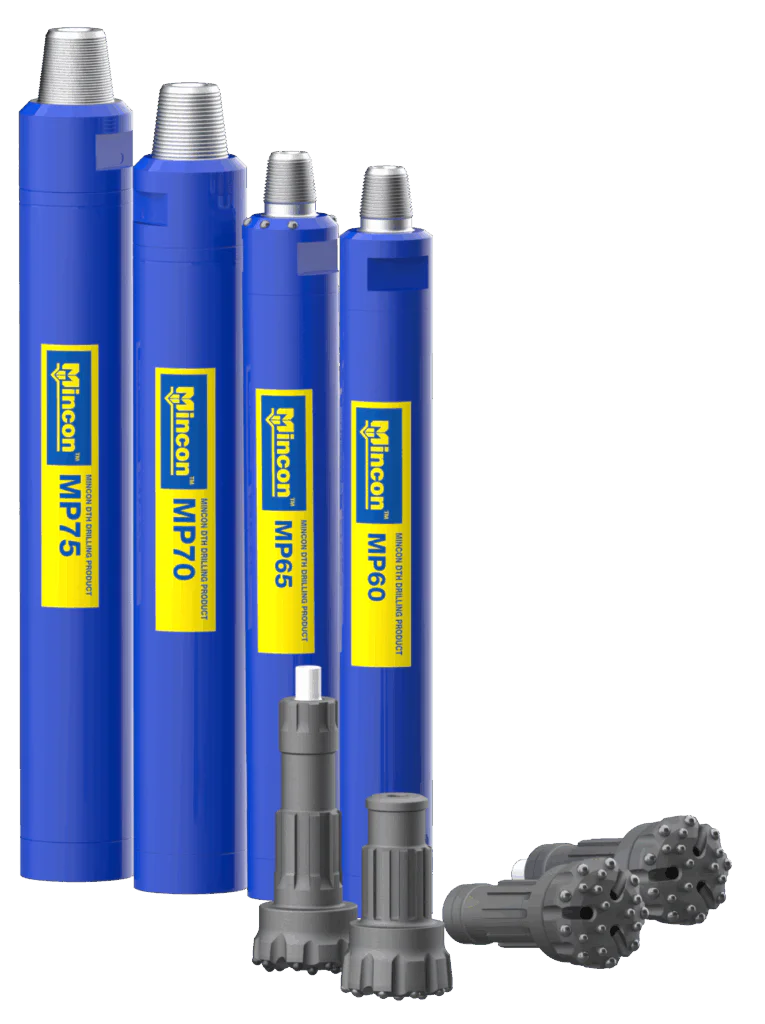

6-7-inch DTH Hammers
The MP-series is our comprehensive range of next-generation DTH hammers. The MP60, MP65, and MP70 hammers can be used for hole sizes between 152 mm and 228 mm (6” – 9”). All MP-series DTH hammers offer unparalleled versatility and compatibility, with supports for industry-standard shanks as well as Mincon-designed shanks. Additionally, MP-series hammers are available in variants that support drill bits without a footvalve (also known as tubeless drill bits). All models in the next-generation MP-series of DTH hammers are manufactured at our state-of-the-art facilities in Ireland and Finland, ensuring consistently high-quality parts and material properties, for supreme reliability, longevity, and efficiency. When used in conjunction with other products in our range, customers will benefit from all the next-generation Mincon drilling technologies that improve penetration rates without compromising on efficiency, while reducing emissions and drilling costs.
-
Drill Bit Sizes
152 mm – 228 mm (6” – 9”)
-
Thread Connection
3½” – 4½” API Reg
-
Hammer OD
140 mm – 173 mm (5.5” – 6.8”)
-
Shank Support
DHD360, QL60, MQ60, MC61, MC71
Specifications
| Hammer name | Shank support | Foot valve | Standard backhead thread / type | Hammer OD | Hammer length (shoulder to shoulder) | Minimum bit size | Maximum bit size | Hammer weight | Piston weight | Links |
|---|---|---|---|---|---|---|---|---|---|---|
| MP6H-DH | DHD360 | Yes | 3 1/2″ API | 140 mm (5.5") | 1,134 mm (44.6") | 152 mm (6") | 203 mm (8") | 95.2 kg (210 lbs) | 20.3 kg (44.8 lbs) | Data sheet |
| MP60-QL | QL60 | Yes | 3 1/2″ API | 141 mm (5.6″) | 1,002 mm (39.4") | 152 mm (6″) | 203 mm (8″) | 83.7 kg (184.5 lb) | 21.6 kg (47.6 lb) | Data sheet |
| MP60-MQ | MQ60 | No | 3 1/2″ API | 141 mm (5.6″) | 1,002 mm (39.4") | 152 mm (6″) | 203 mm (8″) | 85 kg (187.4 lb) | 19.3 kg (42.5 lb) | Data sheet |
| MP60-MC | MC61 | No | 3 1/2″ API | 141 mm (5.6″) | 1,002 mm (39.4") | 152 mm (6″) | 203 mm (8″) | 89 kg (196 lbs) | 23 kg (50.7 lb) | Data sheet |
| MP65-QL | QL60 | Yes | 3 1/2″ API | 146 mm (5.8″) | 1,002 mm (39.4") | 159 mm (6.3″) | 203 mm (8″) | 93 kg (205 lb) | 21.6 kg (47.6 lb) | Data sheet |
| MP65-MQ | MQ60 | No | 3 1/2″ API | 146 mm (5.8″) | 1,002 mm (39.4") | 159 mm (6.3″) | 203 mm (8″) | 93 kg (205 lb) | 19.3 kg (42.5 lb) | Data sheet |
| MP65-MC | MC61 | No | 3 1/2″ API | 146 mm (5.8″) | 1,002 mm (39.4") | 159 mm (6.3″) | 203 mm (8″) | 96.4 kg (212.5 lb) | 23 kg (50.7 lb) | Data sheet |
| MP70-MC | MC71 | No | 4 1/2″ API | 173 mm (6.8") | 1,114 mm (43.9″) | 191 mm (7.5") | 228 mm (9″) | 156.9 kg (346 lbs) | 30.3 kg (66.8 lb) | Data sheet |
FOOTVALVE VS NO FOOTVALVE
We offer DTH drill hammers with support for bits with and without footvalves, depending on the application at hand and customer requirements. Hammers that support bits with footvalves are designed to accommodate this insert. All hammers with an MQ and MC designation only support drill bits without a footvalve. Mincon hammers are available with support for most major third-party shanks, as well as Mincon’s own MC-style shank which does not have a footvalve.
-
