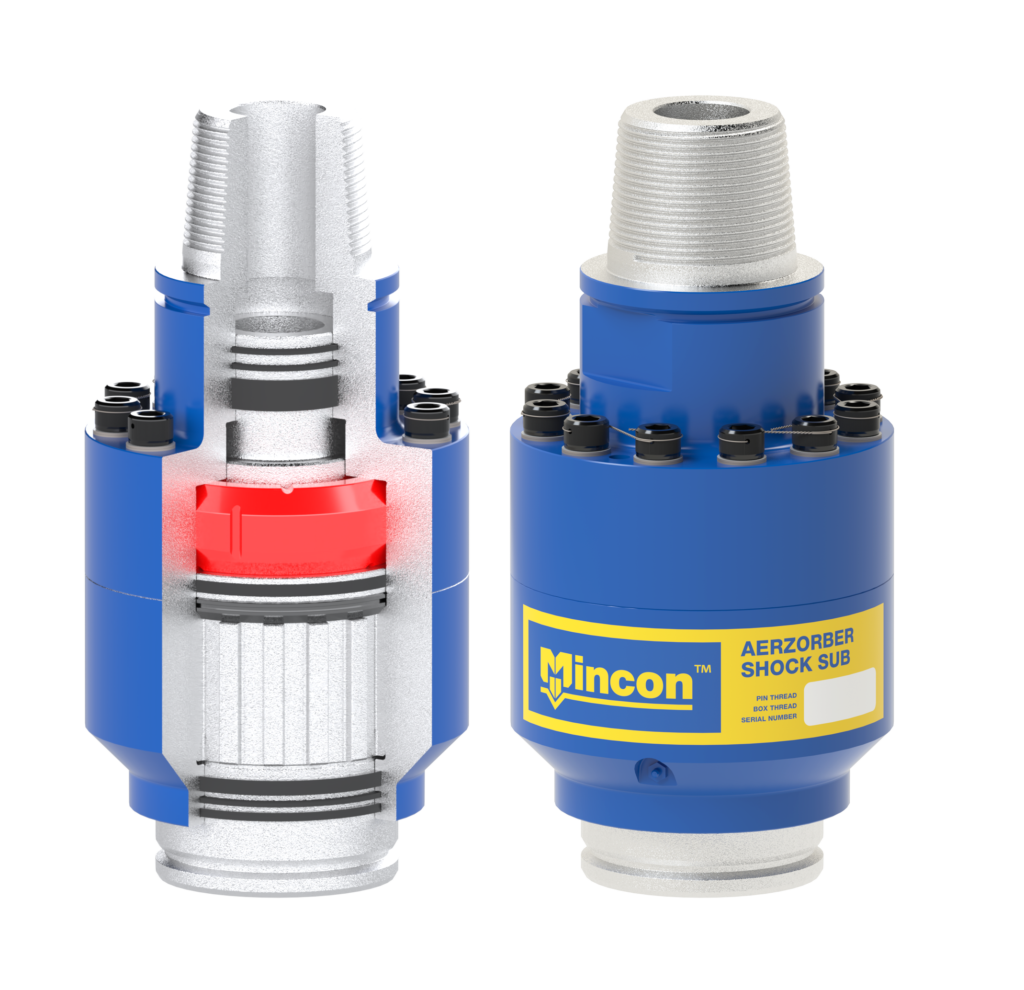

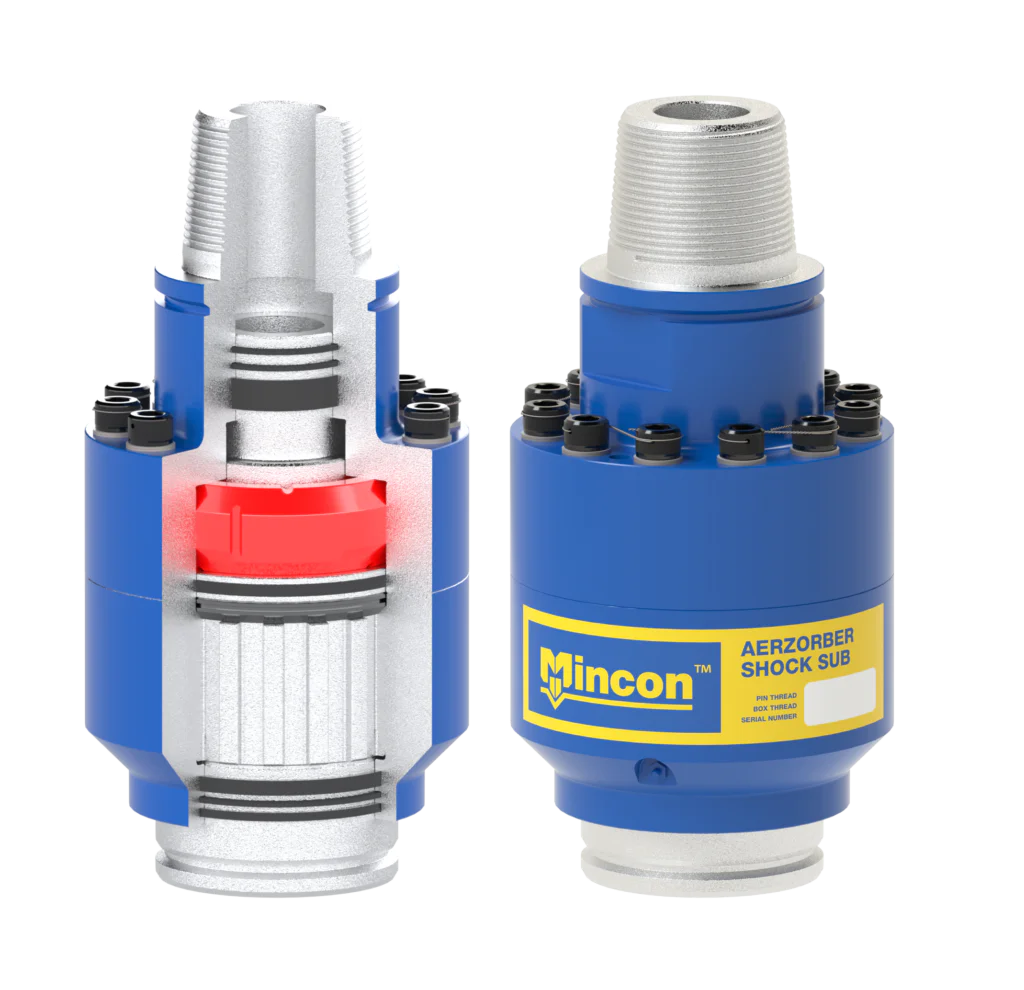

Aerzorber
Aerzorber protects your drill rig from all forces in the drill string: focal, torsional, shock loading, and vibrations. The new, third-generation Aerzorber has been fine-tuned by our engineers, using data from drill sites around the world. The result? A multi-purpose floating shock sub that lasts longer, requires less maintenance, and has one purpose – to protect your drill. Streamlined to two sizes, the 9-1/4” and 12” which covers a wide range of hole diameters, from 4” to 15”, for both percussion and rotary drilling methodologies. Other sizes available on request.
Protect your drill rig and drill string
Aerzorber has a proven record for helping drillers extend the life of their drill string, and avoid costly repairs on their drilling equipment.

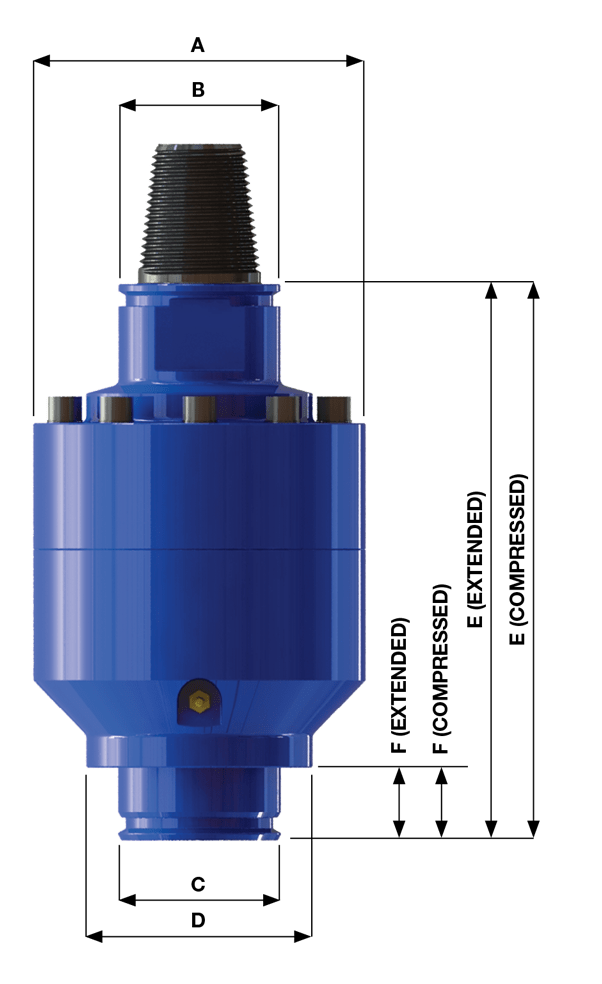

Sizes & Specs
| 9-1/4” | 10” | 10-3/4” | 12” | |
|---|---|---|---|---|
| A | Ø235 mm | Ø254 mm | Ø273 mm | Ø304.8 mm |
| B | Ø114.5 mm | Ø140 mm | Ø171 mm | Ø194 mm |
| C | Ø115.2 mm | Ø140 mm | Ø171 mm | Ø193 mm |
| D | Ø160 mm | Ø180 mm | Ø220 mm | Ø235 mm |
| E (Extended) | 380 mm | 380 mm | 380 mm | 490 mm |
| E (Compressed) | 360 mm | 360 mm | 360 mm | 460 mm |
| F (Extended) | 50 mm | 50 mm | 45 mm | 55 mm |
| F (Compressed) | 30 mm | 30 mm | 25 mm | 35 mm |
| Weight | 75 kg | 85 kg | 105 kg | 165 kg |
| Max Torque | 7,500 Nm | 10,000 Nm | 16,000 Nm | 19,000 Nm |
| Max Pulldown | 34 KN | 275 KN | 292.5 KN | 127 KN |
| Max Weight on Bit | 20,000 kg | 28,000 kg | 32,000 kg | 40,000 kg |

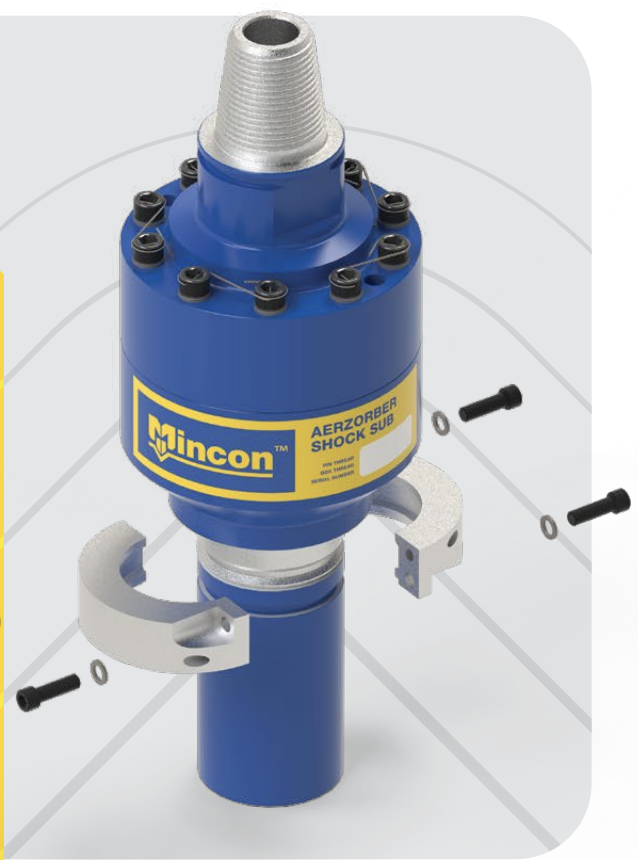

AERZORBER® LOCKING CLAMP BY MINCON
Eliminate the need for thread lockers or welding when attaching existing sub adapters to your Aerzorber, by using the Aerzorber Locking Clamp. These clamps are designed to significantly reduce downtime and ensure even greater reliability when using Aerzorber.
Reduce downtime by eliminating thread locker or welding.
Easily to attach and remove.
Secure fastening system using high-tensile bolts and Nordlock washers.
Available to suit 9¼”, 10”, 10¾”, and 12” Aerzorber® models.
