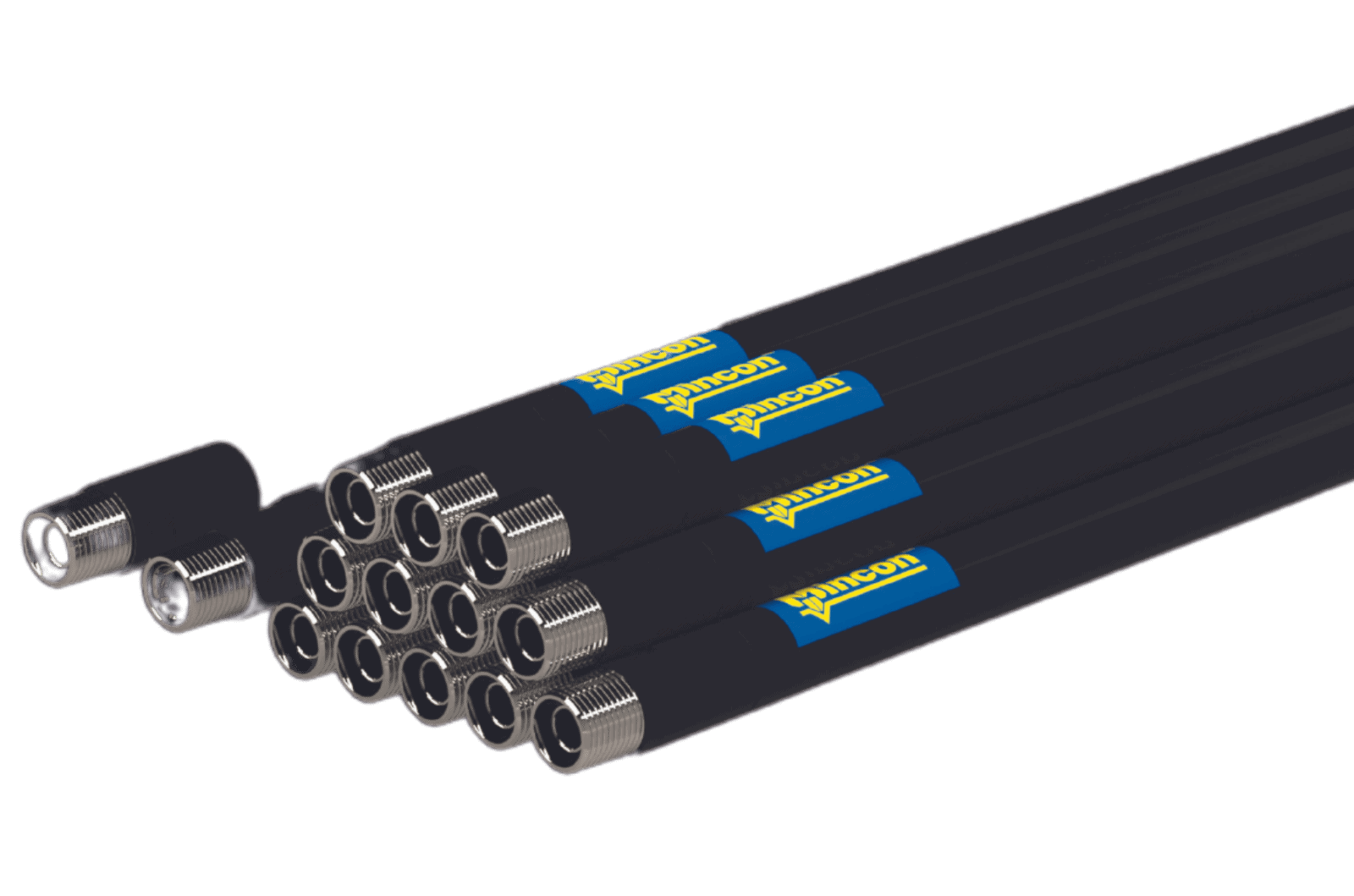

Drill Pipe
Mincon offers a complete range of world class drill string components for the mining, quarrying, water well and ground engineering industries
-
Pipe diameter
44 mm - 1,400+ mm
-
Pipe lengths
0.5 m - 12 m
-
Supported thread types
63+
WORLD CLASS FEATURES THAT BRING REAL VALUE
Mincon's tubular products, the choice of today’s drilling professionals. Unique features that offer real value:
-
Cold drawn seamless pipe
- Straighter drill pipes mean smoother drilling with less stress on the drill rig.
- Higher strength pipe allows for thinner wall thickness and less weight.
- Smooth inner bore prevents scale from entering tooling.
-
Case hardened threads
- Case hardening ensures that DriconeqTM pipe threads last at least 50 % longer than industry standard threads./li>
-
Less weight
- Less weight in your drill string allows for drilling deeper holes utilizing lower pull back capacity or lower pull back capacity when investing for the same hole depth.
-
Energy efficient internal design
- DriconeqTM drill pipes are designed and manufactured to minimize and optimize energy consumption
- Driconeq™ RC pipes have among the lowest pressure drop in the industry.
-
Friction welded pipe
- Friction welded pipe eliminates the need for shrink fitting ensuring less weight.
- 100% metal to metal joint with parent metal properties and low temperature process generates small HAZ (Heat Affected Zone) ensures high strength with a low risk of failure.
-
Long life and low energy consumption
- Drillers save money with less annual consumption and lower fuel costs.
EX-FLOW® INNOVATION. EFFICIENCY ENGINEERED.

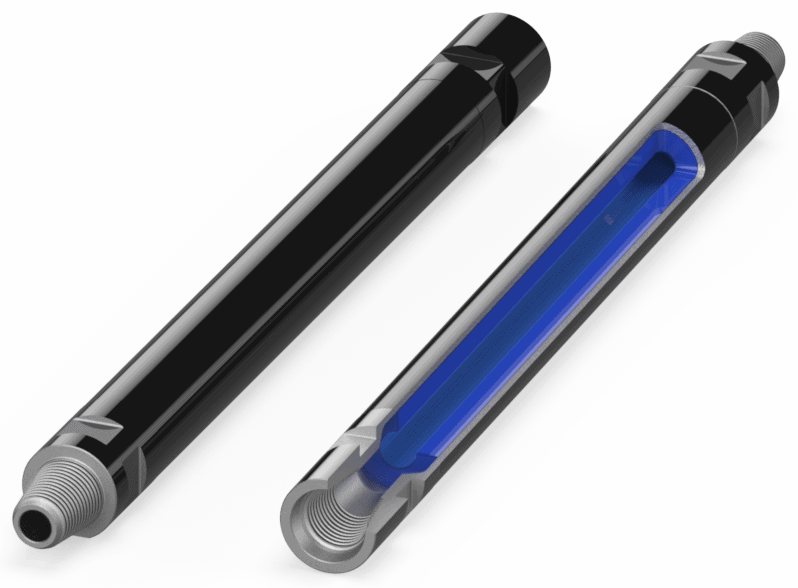

Using our patented technology, eX-Flow® reduces hammer drilling noise levels by a huge margin. eX-Flow® drill pipes lower the amount of air volume needed in each drill rod, thus reducing sound transfer. This significantly increases site safety and protects your employees. Lower air requirements also translates to high efficiency, bothin performance and consumption. With eX-Flow® drill pipes, you can decrease your fuel consumption by 20% or more. The reduced air requirements of eX-Flow® drill pipes provide a huge benefit for deep drilling projects and high-altitude drilling where air is thinner. Additionally, eX-Flow® increases the speed of your operation compared to standard drill pipes. Less air is needed to reachyour DTH hammer, meaning that it starts drilling sooner.
About eX-Flow
-
Lower
noise levels60%
-
Lower fuel consumption
20%
-
Decrease in
drill time15%
Discover why it’s our most innovative drill pipe yet. Packed with state-of-the-art technology, you won’t believe the difference eX-Flow® makes in drill performance and efficiency.
-
Increased safety when breaking joints
-
Suitable for all type of high pressure compressors
-
Reduced operating hours on compressor and drill rig
-
Lower environmental impact, through reduced CO2 and exhaust gas emissions
-
More drill meters per hour increase the rate of return on your pipe investment
ESSENTIAL ACCESSORIES
Get more from your drill string with Mincon’s range of accessories and tools, designed to extend the life of your drilling system and platform.
Not only does our comprehensive range of worldclass drilling consumables include everything you need to get started with drilling, but also the support systems to keep you productive and reduce costs. Our selection of accessories includes adaptor subs, fishing tools, stabilisers, drill collars, and breakout keys. Also available in the line-up is Aerzorber – our innovative dualrole shock absorber and floating sub. Using air cushion technology instead of mechanical absorption, Aerzorber is designed to function as a float sub when changing pipes in addition to dampening drilling stresses. As a result, it helps to reduce maintenance costs, lowers strain on your drill rig’s rotary head, and improves penetration rates.
-
Mining
Mincon has been supporting mines for over 45 years. Thanks to a global footprint of manufacturing facilities and network of customer support centres, we can supply and service Mincon products in even the most remote and inaccessible parts of the world.
-
Construction / Geotechnical
Mincon provides robust drilling solutions for construction and geotechnical projects that ensure structural integrity and safety. Our equipment is optimized for urban development, infrastructure, and foundation work, enabling precise and reliable drilling
-
Renewable energy
Supporting the transition to sustainable energy, Mincon's drilling tools play a critical role in developing renewable energy sites, including wind farms and solar fields. Our solutions facilitate efficient installation processes, contributing to the global green energy initiative.
-
Geothermal & Water Well drilling
Encountering large volumes of groundwater during water-well drilling projects can have a compounding negative impact on productivity. With low energy consumption and high rates of productivity, Mincon products have become The Driller’s Choice for water-well drilling operations.
