Drill Through Ring Bit System
Casing size 114–1,524 mm
Drill through ring bit system combines a conventional rock bit into a casing advance system. In projects where rock sockets are needed and the foundations are deep, it can save time when there is no need to change the pilot bit with a rock bit. Instead, it is possible to go through overburden and drill a rock socket into bedrock with the same ring bit set.
This drilling system uses Spiral Flush, offering the ultimate in air control for safer drilling in complex ground or urban environments.
Learn about Spiral Flush

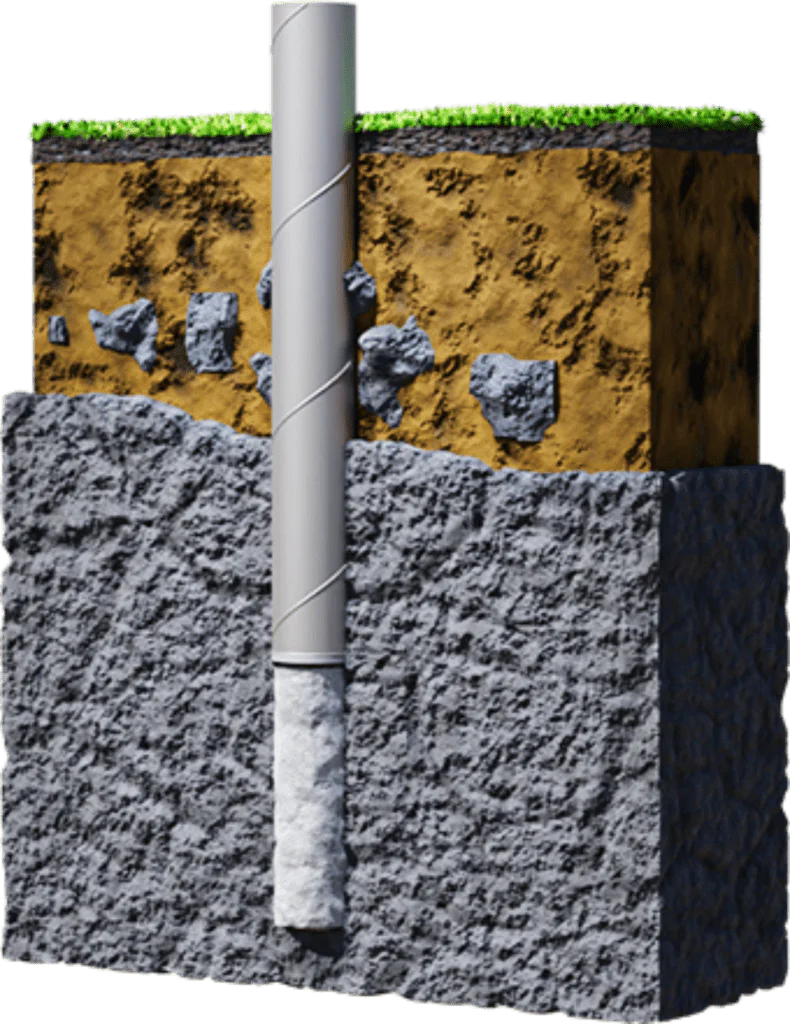

Use with sacrificed casing piles

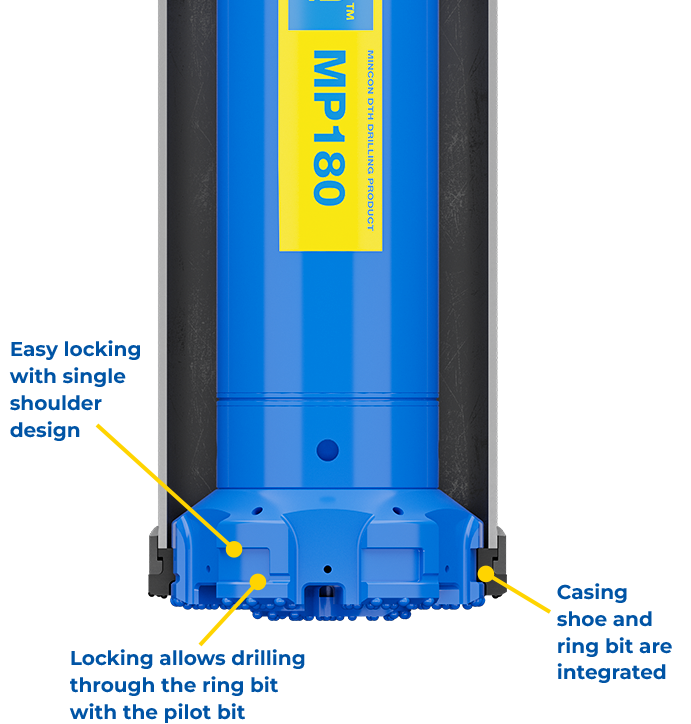

In drill through systems, the pilot bit, after unlocking, can be drilled through the ring bit. This can save time in deep foundations that require rock sockets, by eliminating the need to replace the pilot with a separate rock bit. This pile type is a modification of end-bearing piles for projects which have tensile loads, as rock sockets have an excellent grip in bedrock.
In most cases, however, our large ID system with a separate rock bit is the best option to drill rock sockets to sacrificed casing piles.
Main applications
-
Anchoring applications
-
End-bearing piles with rock sockets in deep foundations
The system is available from 114 to 1 524 mm casings and for all major shank designs. It uses Spiral Flush technology, offering class-leading safety in overburden drilling. The drill through system can also be delivered with a non-DT pilot.
Download the pdf data sheet for detailed information and measurements.
-
