Forepoling Ring Bit System (Tube Umbrella)
Casing size 76–219 mm
Forepoling ring bit system and casing tubes are designed to be drilled with top hammer or DTH in an umbrella shape as secondary support in the tunnel roof. Weak ground and overburden must be strengthened by grouting through the casing and grouting valves into the ground.
Use with tunneling projects

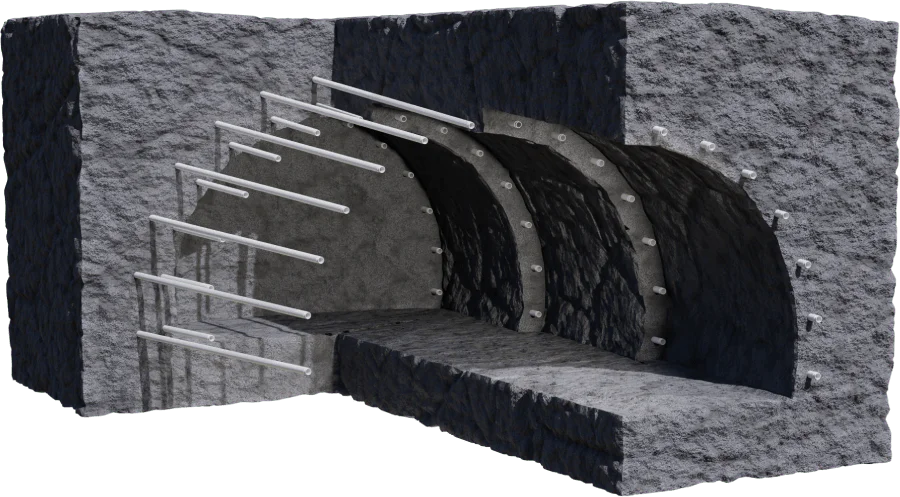

Forepoling is used to strengthen tunnel roofs in soft or caving ground before excavation. Forepoling casings are drilled nearly horizontally into an arc formation and filled with grout that also spreads into the ground through the casing’s grouting valves. These supporting bars then hold the tunnel roof in place, making further excavation safe.
Main applications
-
Forepoling or tube umbrella
-
Anchoring
-
Micro piling
-
PVC drainage
-
Fibre glass face stabilization (GFRP system)
-
Ground consolidation in front of TBM (GFRP system)
The system is available from 76 to 219 mm casings and for all major DTH shanks and top hammer threads.
Download the pdf data sheet for detailed information and measurements.
-

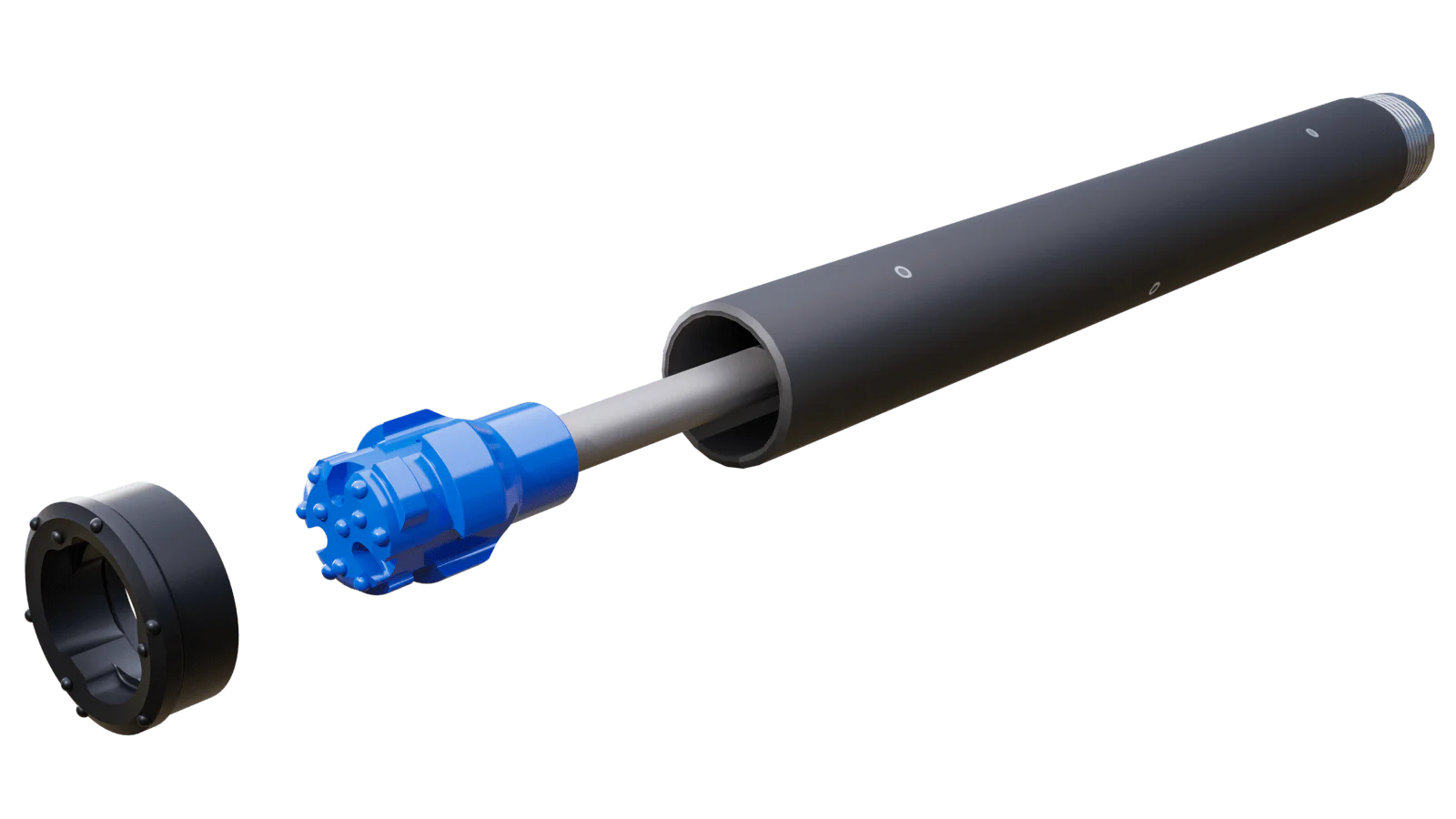

Steel Casings
Steel casings are the most used casing option. Their main features are:
-

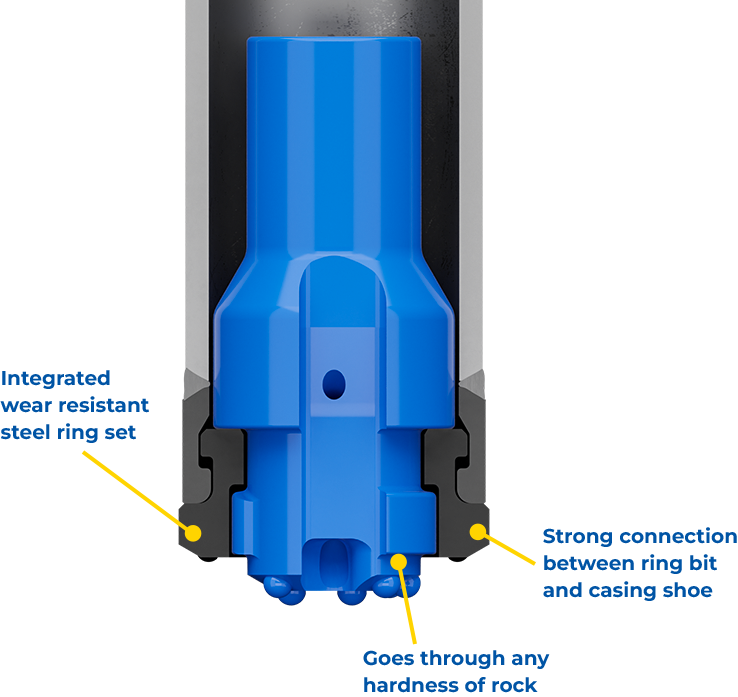

Ring bit is welded to starter casing in our factory
-
Heavy duty ring bit protects the pilot gauge buttons
-
Optional one way valves for grouting can be installed in our factory (3–10 bar)
-
Rods and other accessories are available
-
-

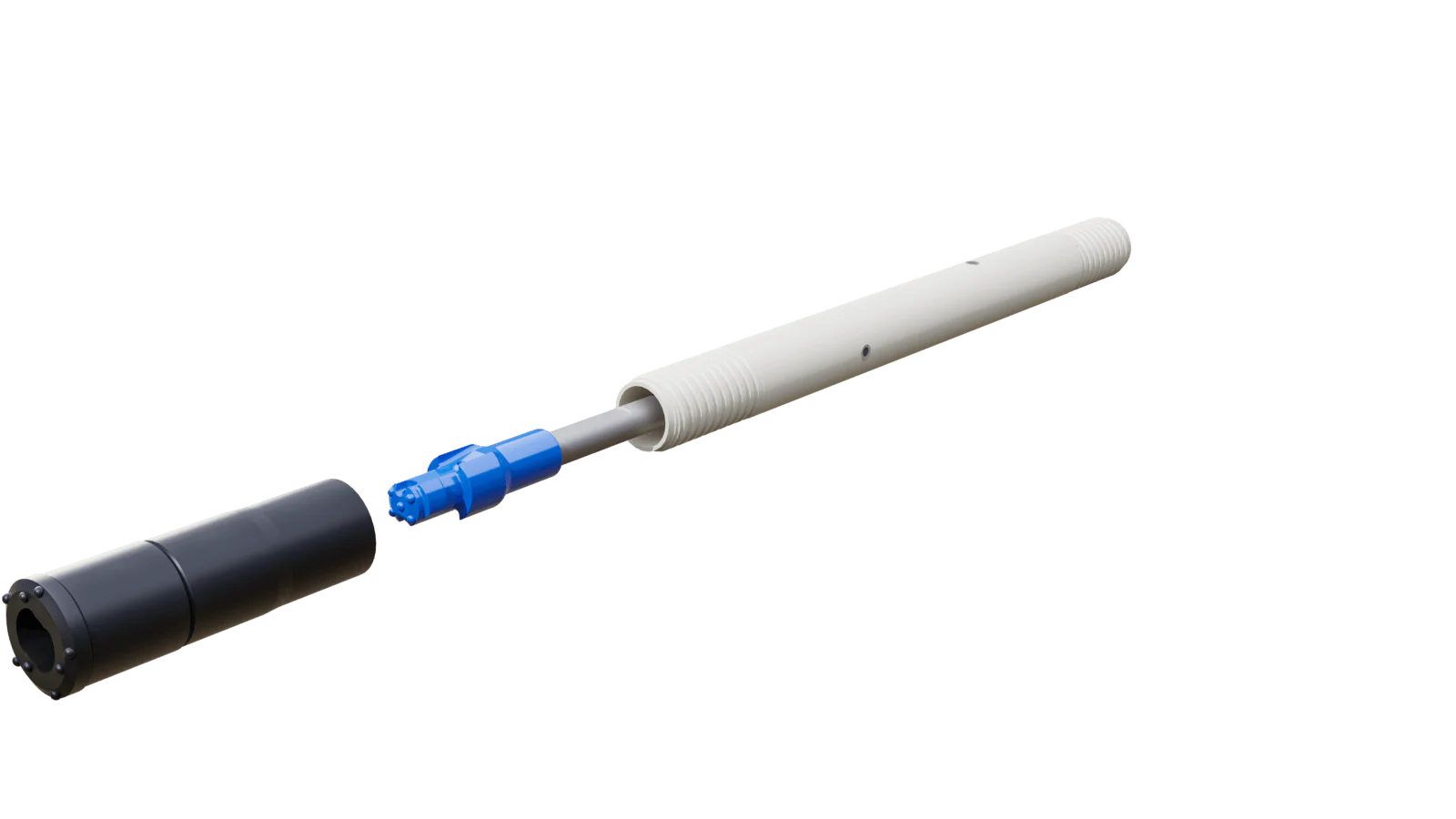

GFRP casings
Glass fiber reinforced polymer casings are a special type of casings that are used in face stabilization. Their main features are:
-
Can be delivered with threaded extension casings
-
Ring bits come with GFRP adapters
-
Optional one way valves for grouting can be installed in our factory (3–10 bar)
-
Rods and other accessories are available
-
-
