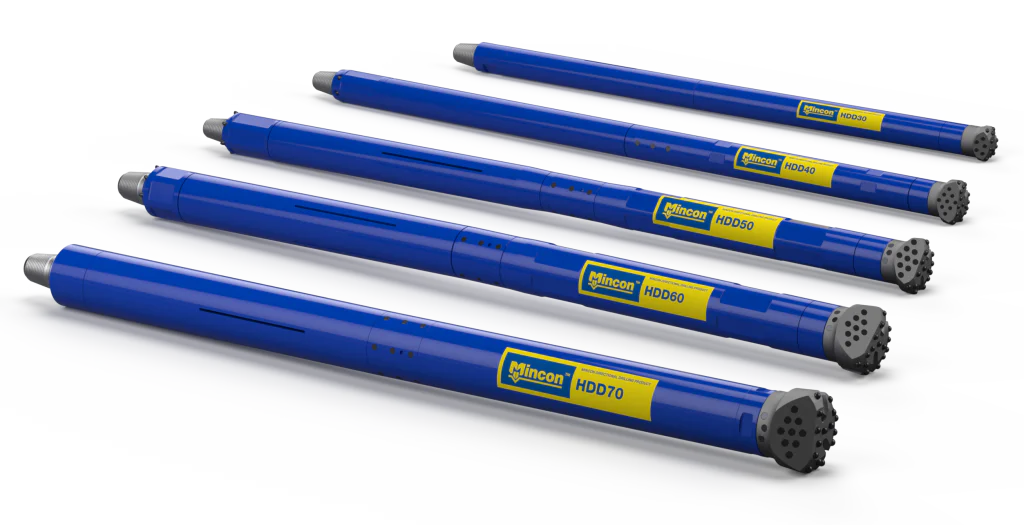

HDD Pilot Hammers
Mincon’s HDD range starts with our selection of finely-tuned pilot hammers, available in 3.5” (89 mm), 4.5” (114 mm), 5.25” (133 mm), 6.25” (159 mm), and 7.25” (184 mm) sizes.
-
Applications:
Best suited for jobs with significant steering requirements and when transitioning in and out of rock formations.
Specifications
RC hammer specifications
| Mincon Hammer Model | HDD30 | HDD40 | HDD50 | HDD60 | HDD70 |
|---|---|---|---|---|---|
| Vermeer Drill Rig | D8 - D10 | D20 | D23 - D24 - D40 | D40 - D60 - D100 | D60 - D100 - D130 |
| Bit Size | 3.5 inch
89 mm |
4.5 inch
114.3 mm |
5.25 inch
133.35 mm |
6.25 inch
158.75 mm |
7.25 inch
184.15 mm |
| Hammer Diameter | 3.03 inch
77 mm |
3.54 inch
90 mm |
4.06 inch , 4.25 inch
103mm wearsleeve, 108mm sonde housing |
5 inch
127 mm |
5.75 inch
146 mm |
| Hammer Length | 66.4 inch
1,713 mm |
73.5 inches
1867 mm |
79 inches
2007 mm |
81 inches
2057 mm |
82.6 inches ,
78.8 inches to backhead shoulder 2098 (to end of API Pin), 2002.5 to backhead shoulder |
| Hammer Weight | 85 lbs
38.6 kg |
128 lbs
58 kg |
183 lbs
83 kg |
306 lbs
139 kg |
403 lbs
183 kg |
| Backhead Thread | 2 3/8” API Reg Pin | 2 3/8” API Reg Pin | 2 3/8” API Reg Pin | 3 1/2” API Reg Pin | 3 1/2” API Reg Pin |
| Make-up Torque | 2,250 - 3,000 lbf.ft 2 | 2,250 - 3,000 lbf.ft | 3,000 - 4,000 lbf.ft | 3,750 - 5,000 lbf.ft | 4,500 - 6,000 lbf.ft |
| Minimum Air < 250’ | 400cfm @ 250psi | 400 cfm @ 250 psi | 750 cfm @ 350 psi | 900 cfm @ 350 psi 9 | 900 cfm @ 350 psi |
| Minimum Air > 250’ | 500cfm @ 350psi | 700 cfm @ 350 psi | 900 cfm @ 350 psi | 1,100 cfm @ 350 psi | 1,100 cfm @ 350 psi |
| Minimum Air < 76.2m | 11.3 m3/min @ 17.2 bar | 11.33 m3/min @ 17.2 bar | 21.25 m3/min @ 24.1 bar | 25.5 m3/min @ 24.1 bar | 25.5 m3/min @ 24.1 bar |
| Minimum Air > 76.2m | 14.2 m3/min @ 24.1 bar | 19.83 m3/min @ 24.1 bar | 25.5 m3/min @ 24.1 bar | 31.17 m3/min @ 24.1 bar | 31.17 m3/min @ 24.1 bar |
| Air Quality | After Cooled Air Recommended | After Cooled Air Recommended | After Cooled Air Recommended | After Cooled Air Recommended | After Cooled Air Recommended |
-
