JT100 Series Rotary Drill Heads
The JT100 Series Rotation Head has a maximum torque of 5 000 ft.lbs and 2 set speeds with variable speed control in between. The high torque/low speed and low torque/high speed settings allow the operator to alternate the drill head’s power and speed for different applications and drill methods. A 1-1/2” center bore allows for water or air flushing with the optional 2 500 psi 90-degree swivel.
-
/ 01
Did you know?
Did you know?
We specialize in Solar pre-drilling and installation applications. We integrate Trimble® Groundworks Machine Control Systems for real-time GPS location to reduce errors and improve safety, lowering costs for faster project completion. Available on our M112 Drill Mast.
-
/ 02
Did you know?
Did you know?

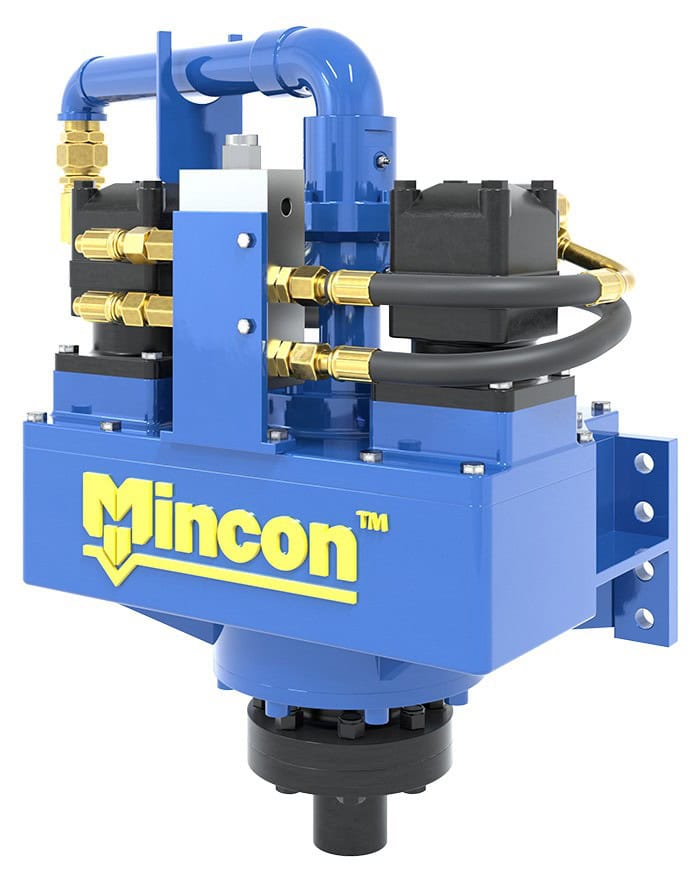

The JT200 Series Drill Heads are built to last with hardened internal components that are designed to stand up to the worlds toughest drilling conditions. With minimal maintenance requirements and exchangeable top motors, the JT200 Series offers torque and RPM combinations for multiple applications to optimize your penetration rates.
05
Configurable Options
02
Variable Control Speeds
01
Main Shaft Construction
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Efficiency Engineered
The JT100 Series Drill Head was first engineered and built in 1992 for high torque drilling applications. To reduce wear and breakdowns the JT100 drill head was built with a solid main shaft. This increased it’s durability and it has since stood up to some of the toughest drilling conditions in the world.
-
Exchangeable motors offer various torque / rpm combinations
-
Hardened internal components last longer in production drilling applications
-
Single drive shaft reduces wear and maintenance requirements.
-
Extended durability reduces the need for up to three competitor drill heads, reducing carbon emissions
SPECIFICATIONS
MODEL: JT101
| Description | Low Speed | High Speed | ||
|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | |
| Max Torque | 2,480 ft-lbs | 3,360 Nm | 1,240 ft-lbs | 1,680 Nm |
| Max Speed | 116 rpm | 174 rpm |
MODEL: JT102
| Description | Low Speed | High Speed | ||
|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | |
| Max Torque | 3,140 ft-lbs | 4,260 Nm | 1,570 ft-lbs | 2,310 Nm |
| Max Speed | 87 rpm | 174 rpm |
MODEL: JT103
| Description | Low Speed | High Speed | ||
|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | |
| Max Torque | 3,890 ft-lbs | 5,280 Nm | 1,950 ft-lbs | 2,640 Nm |
| Max Speed | 69 rpm | 139 rpm |
MODEL: JT104
| Description | Low Speed | High Speed | ||
|---|---|---|---|---|
| Imperial | Metric | Imperial | Metric | |
| Max Torque | 5,040 ft-lbs | 6,840 Nm | 2,520 ft-lbs | 3,420 Nm |
| Max Speed | 53 rpm | 106 rpm |
-
