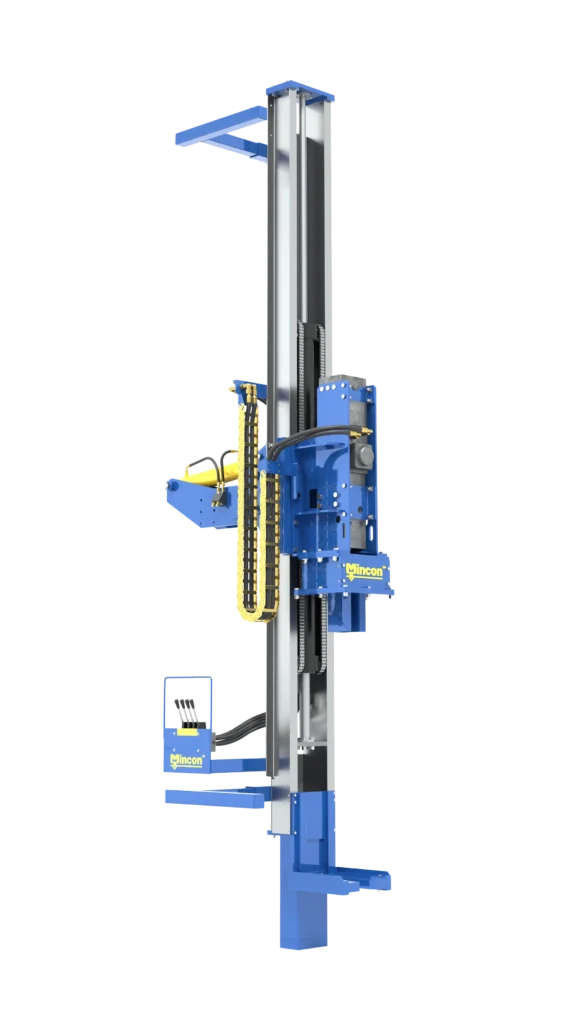

M212 Drill Mast Attachment
The M212 Drill Mast Attachment for skid steers or excavators is ideal for solar pre-drilling up to 12” OD and ground screw installation applications. Capable of drilling to 12ft deep in a single pass, the M212 is Trimble Ready® from the factory for GPS location system installation. The JT200 Drill Head is set up for DTH Hammer drilling applications with an optional quick-change adaptor for installing ground screws, reducing the change-over to seconds and saving solar installers valuable time on utility-scale projects.
-
Height
17’ 5” (5.3 m)
-
Mast Stroke
12’ (3.6 m)
-
Width
58.4” (1,483 mm)
-
Weight (mast only)
3 520 lb (1,600 kg)
- Power & Hydraulics
- Dimensions
- Rotary Head - JT200 Series
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | 206 bar |
| Max Flow Rate | 34 Gal/min | 128 L/min |
| Max Pullback / Pushdown | 22,000 lb | 9,979 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 17’ 5” | 5.3 m |
| Mast Stroke | 12’ | 3.6 m |
| Width | 58.4” | 1,483 mm |
| Weight* (excl. hydraulic hoses) | 3,520 lb | 1.600 kg |
| Attachment Type | Excavator Only |
| Description | Imperial | Metric |
|---|---|---|
| Max Torque | 10,595 ft-lbs | 14,230 Nm |
| Max Speed | 204 rpm | |
| Speed Control | Variable | |
| *Available with Trimble® Groundworks Machine Control System Integration |
-
/ 01
Did you know?
Did you know?
You can save time and increase productivity by fitting the M212-PD Drill Mast with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
-
/ 02
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Innovative Simplicity
With their own practical drilling experience the Mincon Rock Drill engineers used innovative simplicity to design a series of drilling units that were easy to maintain and service. This engineering methodology designed a series of machines that are built to last:
- Engineered simplicity also means components are stronger and more durable.
- Maintenance requirements are reduced with fewer wearable items and moving parts.
- Off-the-shelf parts and spares can be utilized from local suppliers, Lowering maintenance and operating costs.
-
