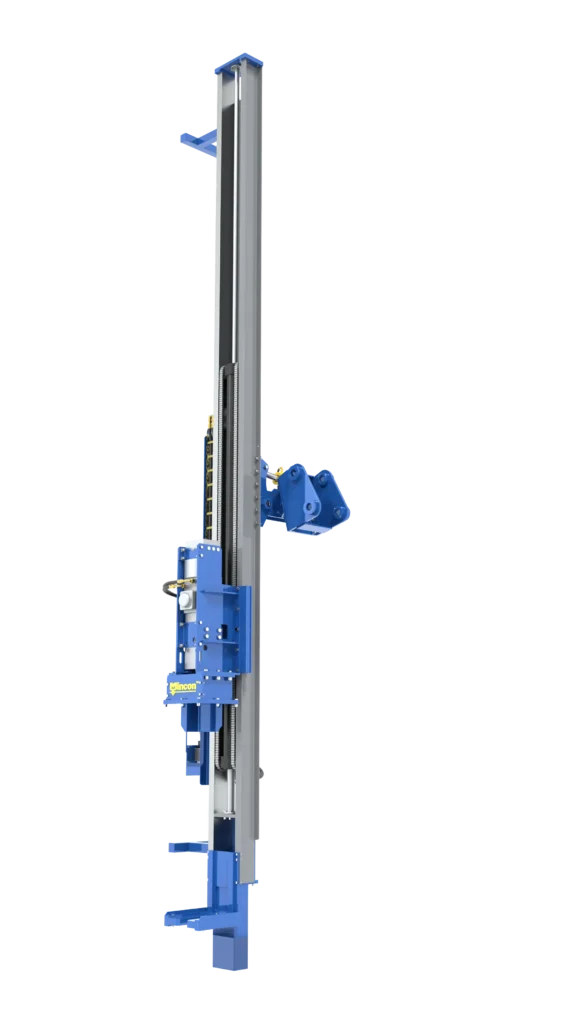

M220-PD Solar Pile Driver
The M220-PD Solar Pile Driver Mast for Excavator Attachment is ideal for solar pile driving applications. A 1 000 joule impact force hammer drives piles fast and efficiently via the included remote control pack. The hydraulic slide moves the mast quickly on and off the pile, while integrated GPS systems get you on location. The M220-PD Pile Driver Attachment connects to the excavator’s auxiliary hydraulic ports and can be operated via the main control panel on the drill mast or the included remote control pack.
-
Height
25’ 6” (7.77 m)
-
Mast Stroke
20’ (6 m)
-
Max Pullback
22,000 lb (9,979 kg)
-
Weight (mast only)
4,125 lb (1,875 k)
- Power & Hydraulics
- Dimensions
- Hammer
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | 206 bar |
| Max Flow Rate | 34 Gal/min | 128 L/min |
| Max Pullback / Pushdown | 22,000 lb | 9,979 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 25’ 6” | 7.77 m |
| Mast Stroke | 20’ | 6 m |
| Width | 58.4” | 1,483 mm |
| Weight* (excl. hydraulic hoses) | 4,125 lb | 1,875 kg |
| Attachment Type | Excavator Only |
| Description | Imperial |
|---|---|
| Impact Force | 1,000 joules |
| BPM | 550 - 900 |
| *Available with Trimble® Groundworks Machine Control System Integration |
-
/ 01
Did you know?
Did you know?
You can save time and increase productivity by fitting the M220 PD Drill Mast with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
-
/ 02
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
