MRXT RC Hammer Range
Your drill site doesn’t stand still, and neither does innovation at Mincon. The next-generation Mincon MRXT reverse circulation (RC) hammers use our latest technologies to make exploration drilling even more efficient. Each of these features has been designed and field-tested to ensure that they help deliver high-quality sample and maximum reliability
-
Efficiency through innovation:
The MRXT series boasts an upgraded check valve and an optional bleed chuck sleeve feature. When equipped, the bleed chuck sleeve and bleed chuck help maintain positive air pressure at the bit face by holding the outside water head above the chuck sleeve
Specifications
RC hammer specifications
| MRXT 82 | MRXT 92 | MRXT 109 | MRTX 116 | MRTX 120 | MRTX 132 | |
|---|---|---|---|---|---|---|
| Hammer OD | 82 mm (3.23”) | 92 mm (3.62”) | 109 mm (4.3”) | 116 mm (4.5”) | 120 mm (4.7”) | 132 mm (5.2”) |
| Hammer Length | 1,063 mm (41.9”) | 1,146 mm (45.1”) | 1,268 mm (49.9”) | 1,185 mm (46.6”) | 1,363 mm (53.6”) | 1,363 mm (53.6”) |
| Hammer Weight | 27.0 kg (59.5 lb) | 40.0 kg (88.2 lb) | 58.1 kg (128.1lb) | 66.0 kg (145.5 lb) | 75.2 kg (165.8 lb) | 87.4 kg (192.7 lb) |
| Backhead Spanner Flat Size | 70 mm (2.76”) | 76 mm (3”) | 94 mm (3.7”) | 94 mm (3.7”) | 94 mm (3.7”) | 101 mm (3.98”) |
| Drill bit Shank Type | MR82 | MR92 | MR109 | MR116 | MR120 | MR132 |
| Backhead Threads Available | 73 ARD,
3” Remet |
90 ARDA,
3.5” Remet |
4” Remet,
4” Metzke |
4” Remet, 4” Metzke,
4.5” Remet, 4.5” Metzke, 115 ARDX |
4” Remet, 4” Metzke,
4.5” Remet, 4.5” Metzke, 115 ARDX |
4.5” Remet,
4.5” Metzke, 115 ARDX |
| Minimum Bit Size | 86 mm (3.4”) | 102 mm (4”) | 115 mm (4.53”) | 124 mm (4.88”) | 127 mm (5”) | 140 mm (5.51”) |
| Maximum Bit Size | 102 mm (4”) | 114 mm (4.5”) | 127 mm (5”) | 133 mm (5.24”) | 146 mm (5.75” | 146 mm (5.75”) |
| Maximum Drill Bit Weight | 5.4 kg (11.9 lb) | 7.5 kg (17 lb) | 12.0 kg (26.5 lb) | 13.9 kg (30.6 lb) | 17.0 kg (37.5 lb) | 19.2 kg (42.3 lb) |
| Piston Weight | 4.5 kg (9.9 lb) | 7.5 kg (17 lb) | 12.3 kg (27.05 lb) | 14.0 kg (30.89 lb) | 15.4 kg (33.86 lb) | 18.2 kg (40.19 lb) |
| Backhead Stand-off | 0.8 mm (0.03”) | 0.8 mm (0.03”) | 0.95 mm (0.037”) | 0.95 mm (0.037”) | 0.95 mm (0.037”) | 1 mm (0.039”) |
| Minimum Air Package | 8.5 m3/min @ 13.8 bar
(300 cfm @ 200 psi) |
25.5 m3/min @ 24.1 bar
(900 cfm @ 350 psi) |
25.5 m3/min
@ 24.1 bar (900 cfm @ 350 psi) |
25.5 m3/min
@ 24.1 bar (900 cfm @ 350 psi) |
25.5 m3/min
@ 24.1 bar (900 cfm @ 350 psi) |
25.5 m3/min
@ 24.1 bar (900 cfm @ 350 psi) |
Complete RC Solutions
Mincon has been designing and manufacturing class-leading reverse-circulation (RC) hammers for three decades. We pride ourselves on producing the highest quality, most innovative RC hammers that help drillers achieve high performance and low running costs without sacrificing consistency in sample quality.
The standout feature of the new MRXT range is our top-loading design, which allows for easier inspection and maintenance of the sample tubes. This not only saves time, but also avoids the need for disassembly of the entire hammer As a result, the top-loading design enables faster, safer checking and swapping of sample tubes, ensuring efficient and safe drilling practices while reducing downtime and costs.
-

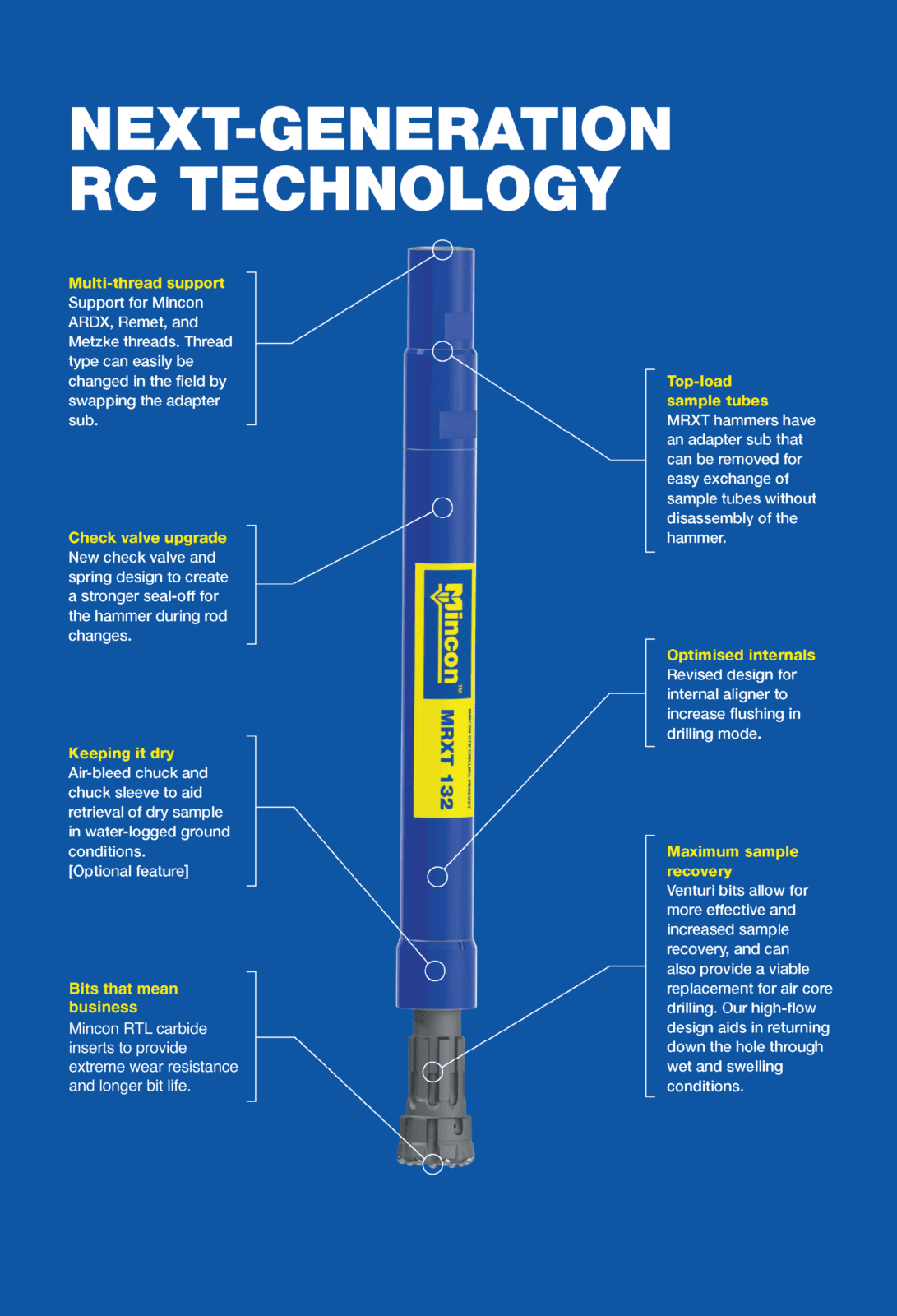

Multi-thread support
-
Check valve upgrade
-
Top-load sample tubes
-
Optimised internals
-
Maximum sample recovery
-
