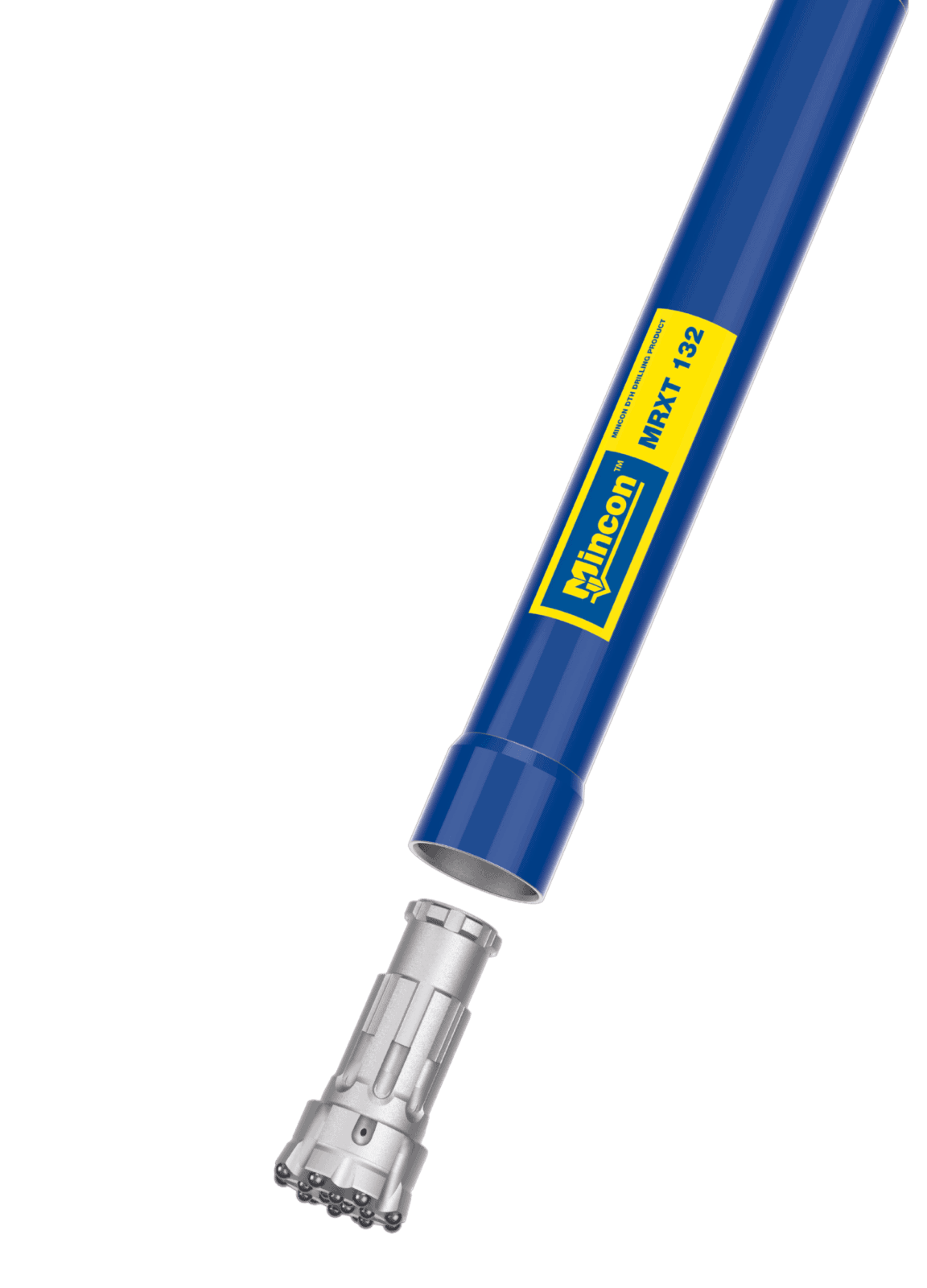

RC Drill Bits
Mincon is introducing an innovative new design for reverse circulation (RC) drill bits, featuring our patented venturi flushing system. Our engineers are continuously developing and evolving our products to add features that matter, and the venturi flushing system is our latest development for RC bits ensuring that we remain the driller’s choice.
-
Efficiency through innovation:
The venturi drill bit design allows for increased airflow during the sample flushing process, resulting in a 40% plus improvement in sample recovery versus conventional RC drill bit designs.
Specifications
RC Drill Bits
| Shank | MRXT 82 | MRXT 92 | MRXT 109 | MRTX 116 | MRTX 120 | MRTX 132 |
|---|---|---|---|---|---|---|
| Minimum Bit Size | 86 mm (3.4”) | 102 mm (4”) | 115 mm (4.5”) | 124 mm (4.88”) | 127 mm (5.24”) | 140 mm (5.5”) |
| Maximum Bit Size | 102 mm (4”) | 114 mm (4.5”) | 127 mm (5”) | 133 mm (5.24”) | 146 mm (5.74”) | 146 mm (5.74”) |
| # of carbides | 16 | 16 | 16 | 19 | 19 | 19 |
| Weight | 5.4 kg (11.9 lb) | 7.5 kg (17 lb) | 12.1 kg (26.6 lb) | 13.6 kg (30 lb) | 14.5 kg (32 lb) | 17.5 kg (38.6 lb) |
| Venturi flushing enabled? | Yes | Yes | Yes | Yes | Yes | Yes |
| Face type | Drop Centre | Drop Centre | Drop Centre | Drop Centre | Drop Centre | Drop Centre |
| Sample holes | 20 mm | 20 mm | 24 mm | 24 mm | 28 mm | 28 mm |
Complete RC Solutions
The new venturi RC drill bits are versatile and can be used in both soft ground and hard rock. This presents a huge time saving compared to air core drilling, as there is no need to swap tooling for harder ground. Venturi bits are also not hindered by water in the borehole: consistently high airflow is able to flush out water-logged samples. As a result, there’s a much lower risk of silting and other complications that cause expensive downtime.
These new drill bits are just one example of Mincon’s drive for continuous improvement, and our dedicationto delivering drilling solutions that deliver
-
Can be used in both soft ground and hard rock
-
Huge time saving compared to air core drilling
-
Not hindered by water in the borehole
-
