18-24-inch DTH Hammers

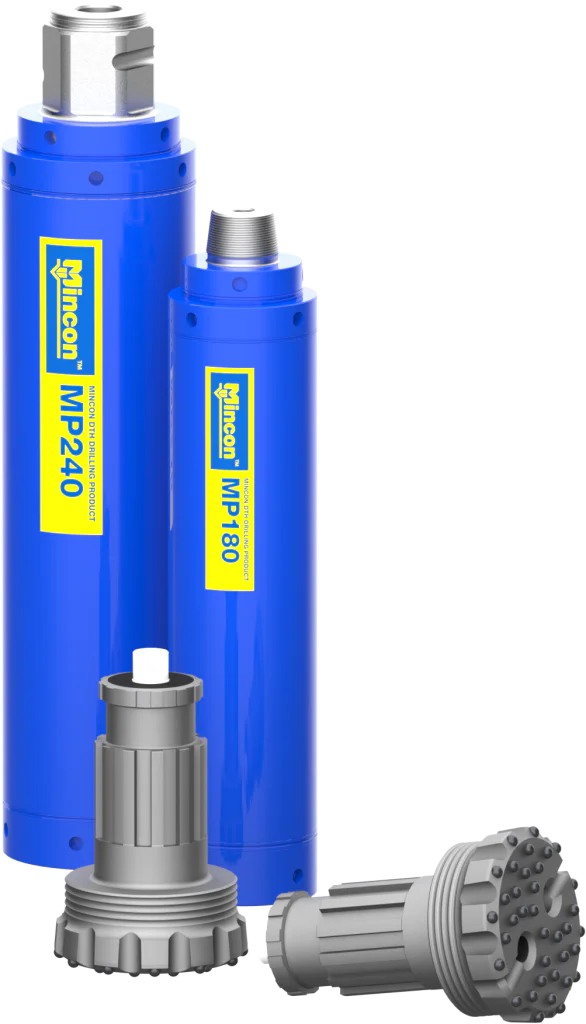

The MP-series is our comprehensive range of next-generation DTH hammers. The MP180 and MP240 large-diameter hammers can be used for hole sizes between 457 mm and 914 mm (18” – 36”). All MP-series DTH hammers offer unparalleled versatility and compatibility, with supports for industry-standard shanks as well as Mincon-designed shanks. Additionally, MP-series hammers are available in variants that support drill bits without a footvalve (also known as tubeless drill bits). All models in the next-generation MP-series of DTH hammers are manufactured at our state-of-the-art facilities in Ireland and Finland, ensuring consistently high-quality parts and material properties, for supreme reliability, longevity, and efficiency. When used in conjunction with other products in our range, customers will benefit from all the next-generation Mincon drilling technologies that improve penetration rates without compromising on efficiency, while reducing emissions and drilling costs.
-
Drill Bit Sizes
850 mm – 1,524 mm (18” – 36”)
-
Thread Connection
8⅝” API Reg / HEX 275
-
Hammer OD
400 mm – 525 mm (15.75” – 20.67”)
-
Shank Support
N180, MQ180, N240, MQ240
Specifications
| Hammer name | Shank support | Foot valve | Standard backhead thread / type | Hammer OD | Hammer length (shoulder to shoulder) | Minimum bit size | Maximum bit size | Hammer weight | Piston weight | Links |
|---|---|---|---|---|---|---|---|---|---|---|
| MP180-QL | QL200 | Yes | 8 5/8″ API | 400 mm (15.8") | 1,659mm (65.3") | 457 mm (18") | 610 mm (24") | 1,177 kg (2,595 lb) | 284 kg (626.1 lb) | Data sheet |
| MP180-N180 | N180 | Yes | 8 5/8″ API | 400 mm (15.8") | 1,695 mm (66.7") | 457 mm (18″) | 610 mm (24") | 1,164 kg (2,566 lb) | 282 kg (621.7 lbs) | Data sheet |
| MP180-MQ | MQ180 | No | 8 5/8″ API | 400 mm (15.8") | 1,781 mm (70.1") | 457 mm (18") | 610 mm (24") | 1,241 kg (2,736 lbs) | 320 kg (705.5 lbs) | Data sheet |
| MP180-MQ BLANK | MQ180 | No | BLANK | 400 mm (15.8") | 1,700 mm (66.9") | 457 mm (18") | 610 mm (24") | 1,142 kg (2,518 lbs) | 287 kg (633 lbs) | Data sheet |
| MP240-N240 | N240 | Yes | Hex 275 | 525 mm (20.7″) | 2,016 mm (79.4″) | 610 mm (24") | 864 mm (34") | 2,480 kg (5,467 lbs) | 548 kg (1,208 lbs) | Data sheet |
| MP240-MQ | MQ240 | No | Hex 275 | 525 mm (20.7″) | 1,987 mm (78.2") | 610 mm (24") | 864 mm (34.1") | 2,565 kg (5,655 lbs) | 544 kg (1,199.4 lbs) | Data sheet |
| MP240-MQ BLANK | MQ240 | No | BLANK | 525 mm (20.7") | 1,987 mm (78.2") | 610 mm (24") | 864 mm (34.1") | 2,395 kg (5,280 lbs) | 544 kg (1,199.4 lbs) | Data sheet |
FOOTVALVE VS NO FOOTVALVE
We offer DTH drill hammers with support for bits with and without footvalves, depending on the application at hand and customer requirements. Hammers that support bits with footvalves are designed to accommodate this insert. All hammers with an MQ and MC designation only support drill bits without a footvalve. Mincon hammers are available with support for most major third-party shanks, as well as Mincon’s own MC-style shank which lacks a footvalve.
-
Mining
Mincon has been supporting mines for over 45 years. Thanks to a global footprint of manufacturing facilities and network of customer support centres, we can supply and service Mincon products in even the most remote and inaccessible parts of the world.
-
Construction / Geotechnical
Mincon provides robust drilling solutions for construction and geotechnical projects that ensure structural integrity and safety. Our equipment is optimized for urban development, infrastructure, and foundation work, enabling precise and reliable drilling.
-
Renewable Energy
Supporting the transition to sustainable energy, Mincon's drilling tools play a critical role in developing renewable energy sites, including wind farms and solar fields. Our solutions facilitate efficient installation processes, contributing to the global green energy initiative.
-
Geothermal & Water Well drilling
Encountering large volumes of groundwater during water-well drilling projects can have a compounding negative impact on productivity. With low energy consumption and high rates of productivity, Mincon products have become The Driller’s Choice for water-well drilling operations.
