Hydraulic Breakout Gate Clamps

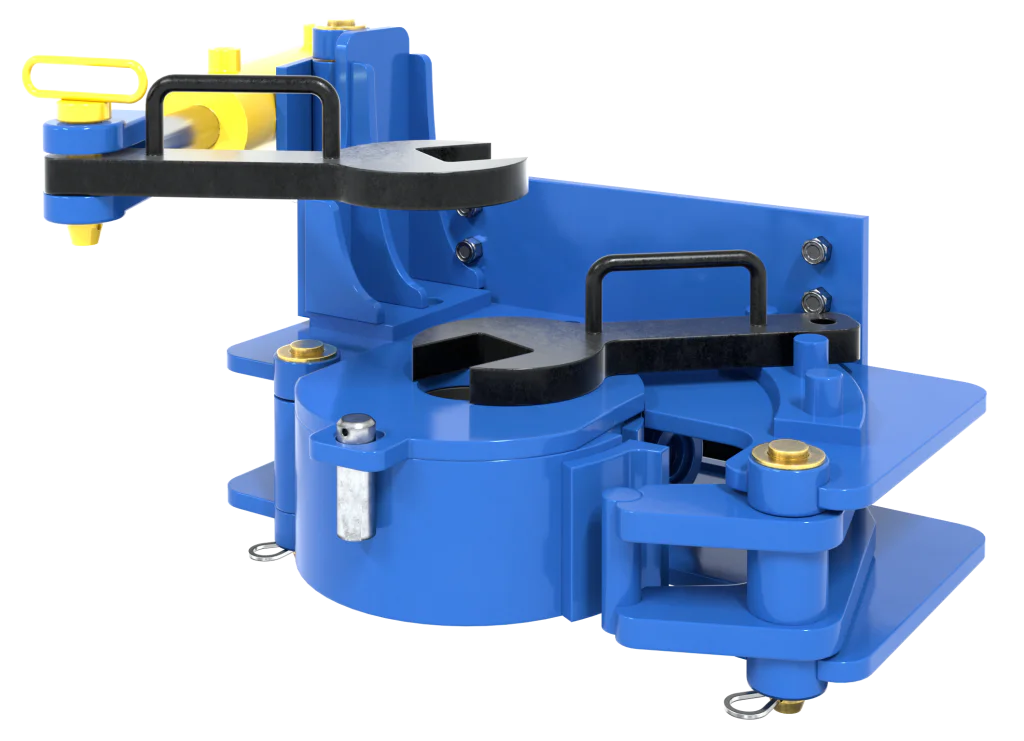

A max 8.8″ ID for casings and min 1″ ID for drill rods. The Gate Clamps come with a hydraulic breakout cylinder and two rod wrenches sized to your applications drill rods. The rods guides or ‘slips’ are also sized to fit the drill rods or casings as required. Capable of gripping both steel and PVC casings the water well and geothermal applications.
-
Model:
Gate Clamps with Hydraulic Breakout Wrench
-
Applications:
Multiple / Drill Rods, Casing, Tooling
-
/ 01
Did you know?
Did you know?
We build Drill Mast Attachment solutions from the ground up with your application, drill depth and bore size requirements. With tooling packages matched to your subsurface conditions, we maximize your penetration rates and project efficiency.
-
/ 02
Did you know?
Did you know?

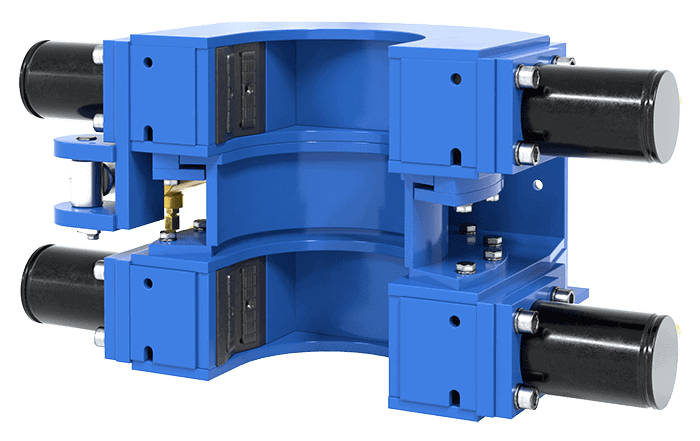

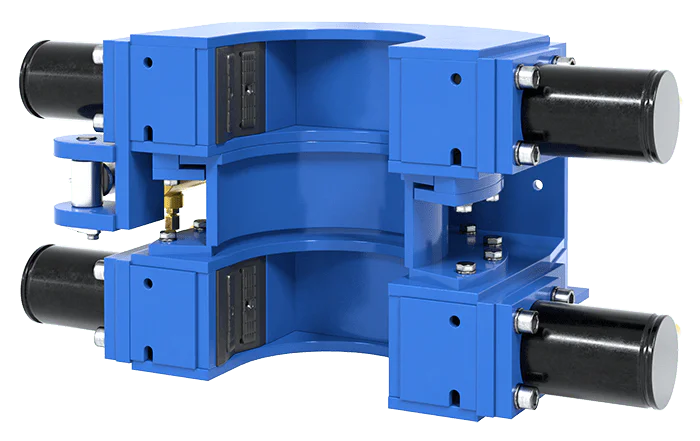

Our Gate Clamps use a Hydraulic Breakout Wrench system to easily break drill rod and DTH hammer connections for water well, geothermal and construction drilling applications. The included wrenches can be customized to fit your drill rods and hammers making these modular clamps ideal for multiple applications.
8.8″
Maximum ID
01″
Minimum ID
17k
Foot-pounds of Breakout Torque
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Modular For More Options
A modular design philosophy means that our Drill Mast Attachments can be quickly customized to your application and tooling setup. Need to breakout drill rods? Choose our Gate Clamps and Hydraulic Breakout Wrench system that can easily be added to your equipment specification.
-
Modular options give you control over your drilling unit setup
-
Easily retrofit our modular options on to our drilling rigs
-
Modular design makes customizations easier and lower cost
-
Adds to easy maintenance and parts replacement
Specifications
CLAMP SPECIFICATIONS
| Description | Imperial | Metric |
|---|---|---|
| Max ID | 8.8″ | 223 mm |
| Min ID | 1″ (slips required) | 25 mm (slips required) |
| Weight | 212 lbs | 96 kg |
| Silps Included | Yes, 1 x Set. (customer to specify size) | |
| Wrenches Included | Yes. 1 x Set. (customer to specify size) |
OPERATING SPECIFICATIONS
| Description | Imperial | Metric |
|---|---|---|
| Pressure | 2,900 psi | 200 bar |
| Flow | 3.5 gpm | 13 lpm |
| Mount Type | 8-Bolt Back/Bottom Plate | |
| Cylinders Included | 2 – Main Clamp & Breakout Wrench |
-
