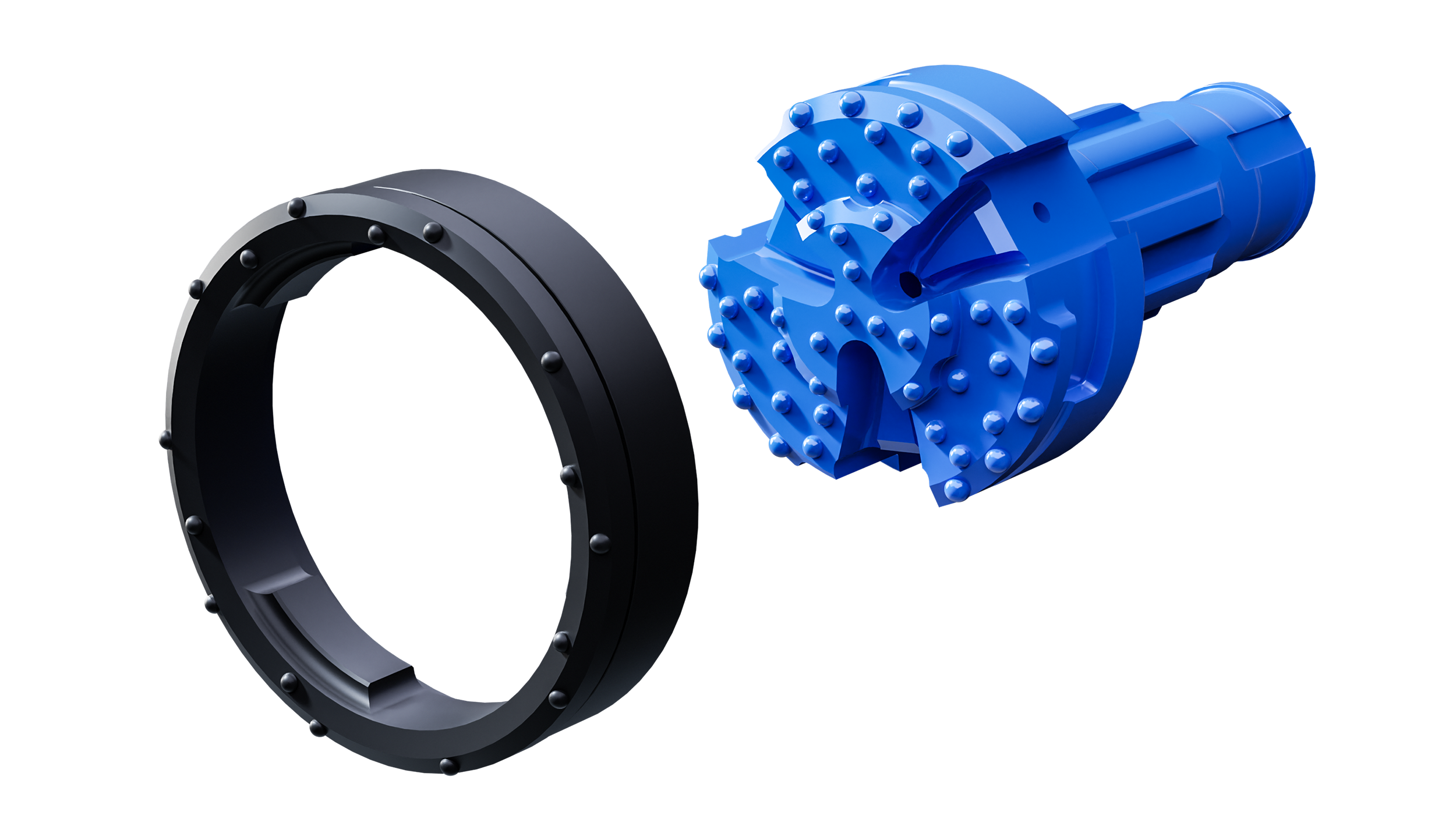

Integrated Gen 2 Ring Bit System
Casing size 114–508 mm
Integrated gen 2 ring bit system is designed for drilling end-bearing piles through overburden into bedrock. The system can drill straight and inclined piles through boulders and rock layers and it easily manages situations where the bedrock itself is inclined. The robust ring bit is integrated into casing shoe, which makes it safe to drill in loose ground and over water. The system is compatible with the most common external threaded casing joint couplers.
This drilling system uses Spiral Flush, offering the ultimate in air control for safer drilling in complex ground or urban environments.
Learn about Spiral Flush
Use with end-bearing piles
Integrated ring bit system is our most recommended system. It is often used with end-bearing piles. These, in turn, are used in projects where casings resting in bedrock are calculated to take part of the load together with the reinforced concrete. This way, the amount of rebar steel inside the casing can be reduced.
The benefit of integrated system over solitary system is that it is safe to operate over water, eliminating the risk of accidentaly dropping and loosing the ring bit.

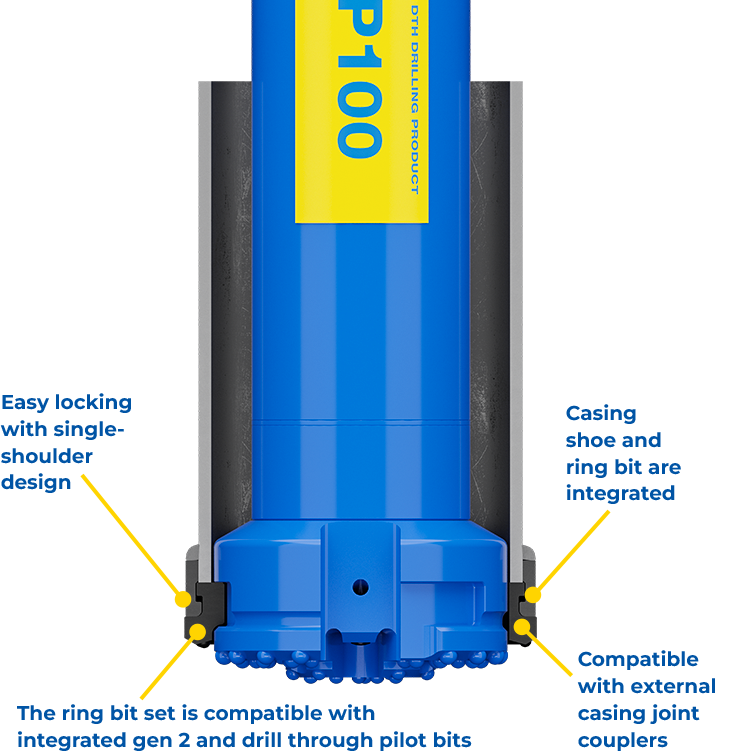

Design features
-
End-bearing piles including micro piling
-
Pilings with sacrificed casings, which have no large ID ring bit requirements
-
Shallow M-Walls
The integrated gen 2 system is available for all major DTH shanks, and in smaller sizes with top hammer threads. Sizes 114–178 mm can be ordered with Spiral Flush Mini or conventional flushing.
Download the pdf data sheet for detailed information and measurements.
