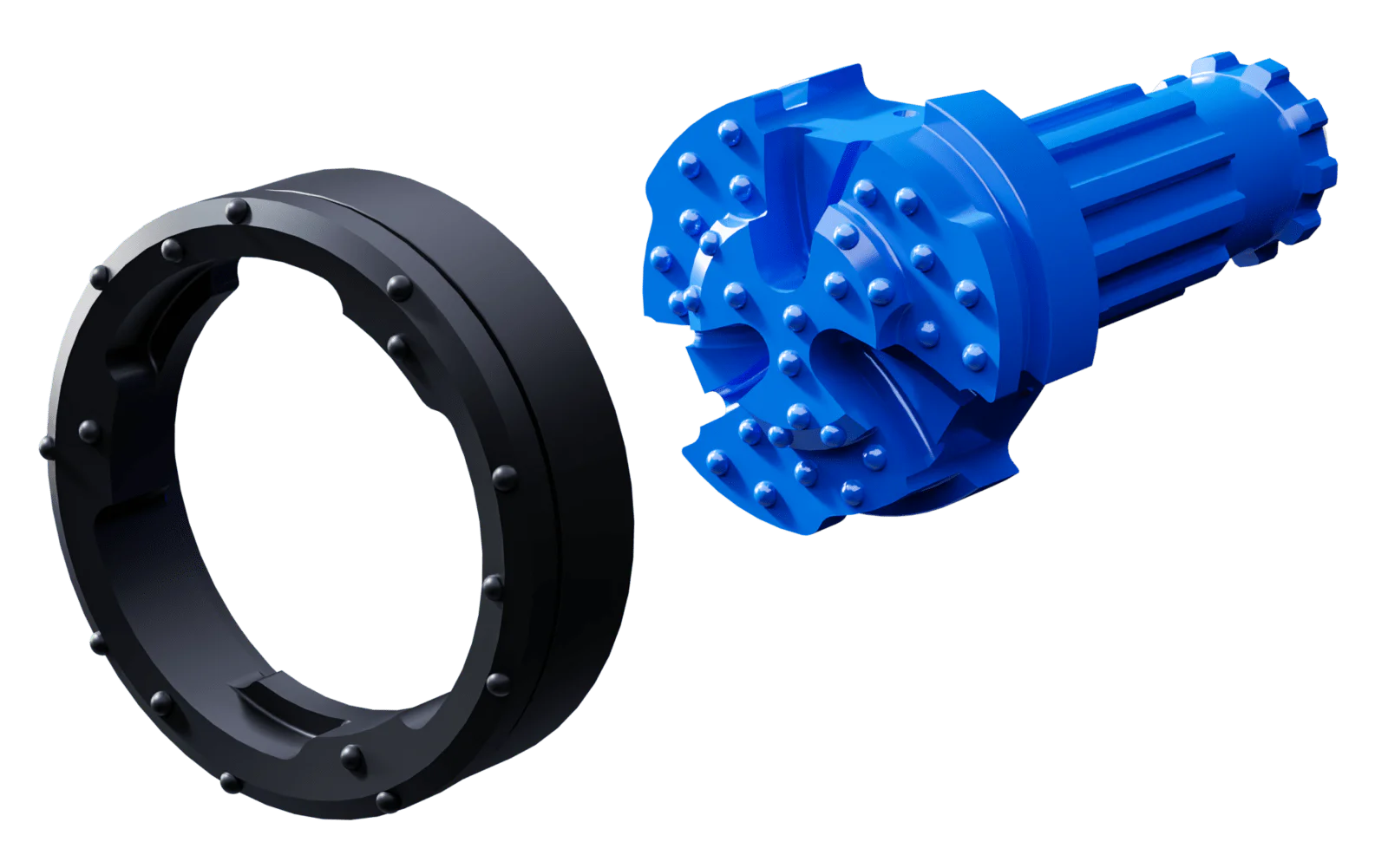

Integrated Ring Bit System, Small
Casing size 114–301 mm
Integrated ring bit systems, divided into small and large designs, are designed for drilling end-bearing piles through overburden into bedrock. The system can drill straight and inclined piles through boulders and rock layers and it easily manages situations where the bedrock itself is inclined. The heavy duty ring bit is integrated into casing shoe, which makes it safe to drill in loose ground and over water.
This drilling system uses Spiral Flush, offering the ultimate in air control for safer drilling in complex ground or urban environments.
Learn about Spiral Flush
Use with end-bearing piles
Integrated ring bit system is our most recommended system. It is often used with end-bearing piles. These, in turn, are used in projects where casings resting in bedrock are calculated to take part of the load together with the reinforced concrete. This way, the amount of rebar steel inside the casing can be reduced.
The benefit of integrated system over solitary system is that it is safe to operate over water, eliminating the risk of accidentaly dropping and loosing the ring bit.

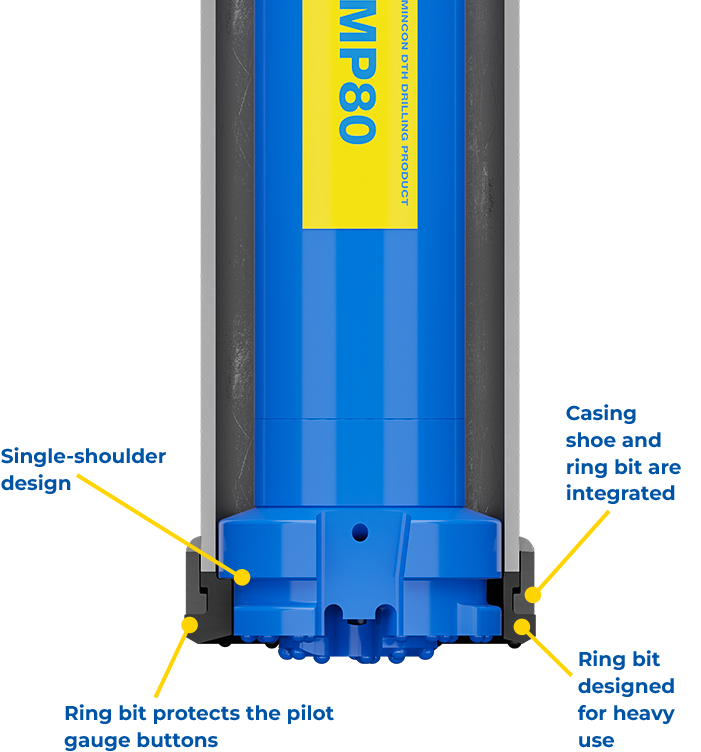

Design features
-
End-bearing piles including micro piling
-
Pilings with sacrificed casings, which have no large ID ring bit requirements
-
Compatible with most external threaded casing joint sleeves
-
Slope stabilization
-
Pipe walls, king piles.
The small integrated system is available from 114 to 301 mm casings and for all major shank designs. It uses Spiral Flush technology, offering class-leading safety in overburden drilling. The single-shoulder pilot is not compatible with the solitary double-shoulder ring bits.
Download the pdf data sheet for detailed information and measurements.
-
