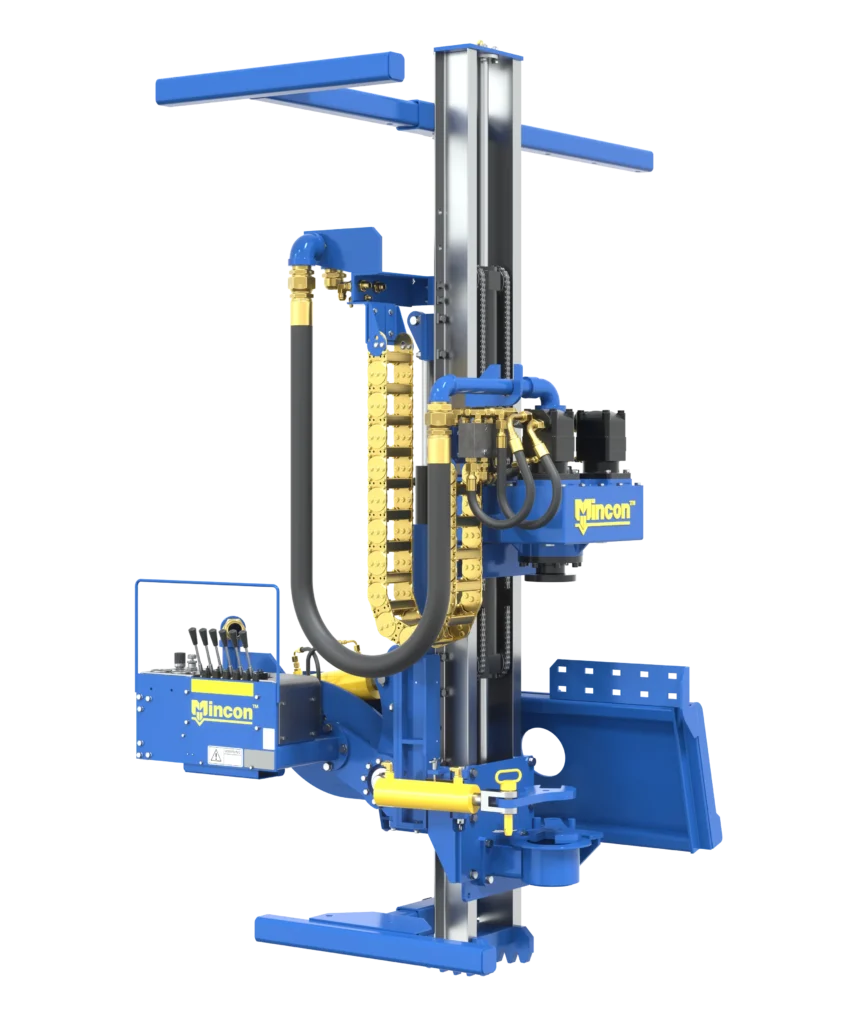

M106 Skid Steer Drill Attachment
The M106 Skid Steer Drill Mast Attachment is ideal for dewatering and solar applications. Capable of drilling with augers, helical anchors, ground screws, DTH hammers and mud drilling setups the M106 is a powerful drill mast attachment. with up to 5,000 ft.lbs of torque it’s a versatile solar drilling and ground screw installation machine. For skid steer or excavator attachment.
-
Height
8.7' (2,662 mm)
-
Mast Stroke
6’ (1,829 mm)
-
Max Pullback
6,000 lbs (2,722 kg)
-
Weight (mast only)
725 lbs (329 kg)
- Power & Hydraulics
- Dimensions
- Rotary Head Options
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | 206 bar |
| Max Flow Rate | 34 gal/min | 128 L/min |
| Max Pullback / Pushdown | 6,000 lb | 2,722 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 8.7' | 2,662 mm |
| Mast Stroke | 6' | 1,829 mm |
| Width | 60" | 1,519 mm |
| Weight* (excl. hydraulic hoses) | 725 lb | 329 kg |
| Attachment Type | Excavator / Skid Steer |
| Description | Imperial | Metric |
|---|---|---|
| Max Torque | 5,100 ft-lb | 6,915 Nm |
| Max Speed | 100 rpm | |
| Speed Control | Variable | |
| *Depending on options. |
-
/ 01
Did you know?
Did you know?
You can save time and increase productivity by fitting the M106 Skid Steer Drill Attachment with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
-
/ 02
Did you know?
Did you know?
The Rock Drill M106 Drill Mast Attachment’s mount plate for mini-excavators or skid steer can be customized to integrate seamlessly with your carrier machine. With a simple 2-hose connection for the pressure and return flow on the carrier machines auxiliary hookup, it drilling couldn’t be easier to start drilling.
3
Drill Head Options
Only 2
Hose Connection
+++
Skid Steer or Excavator Mounts
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts
Skid Steer Or Excavator Attachment
The Rock Drill M106 and M112 drill mast attachments are available for both skid steer or excavator attachment. Mount plates attached to the rear of the drill mast allow for quick attachment / pickup by the carrier machine.
-
Universal skid steer plate fits most skid steer models.
-
Excavator mounts built to suit your excavator
-
Simple 2-hose connection to auxiliary ports on carrier machine
-
Connect / disconnect in seconds with included T-Leg system
-
