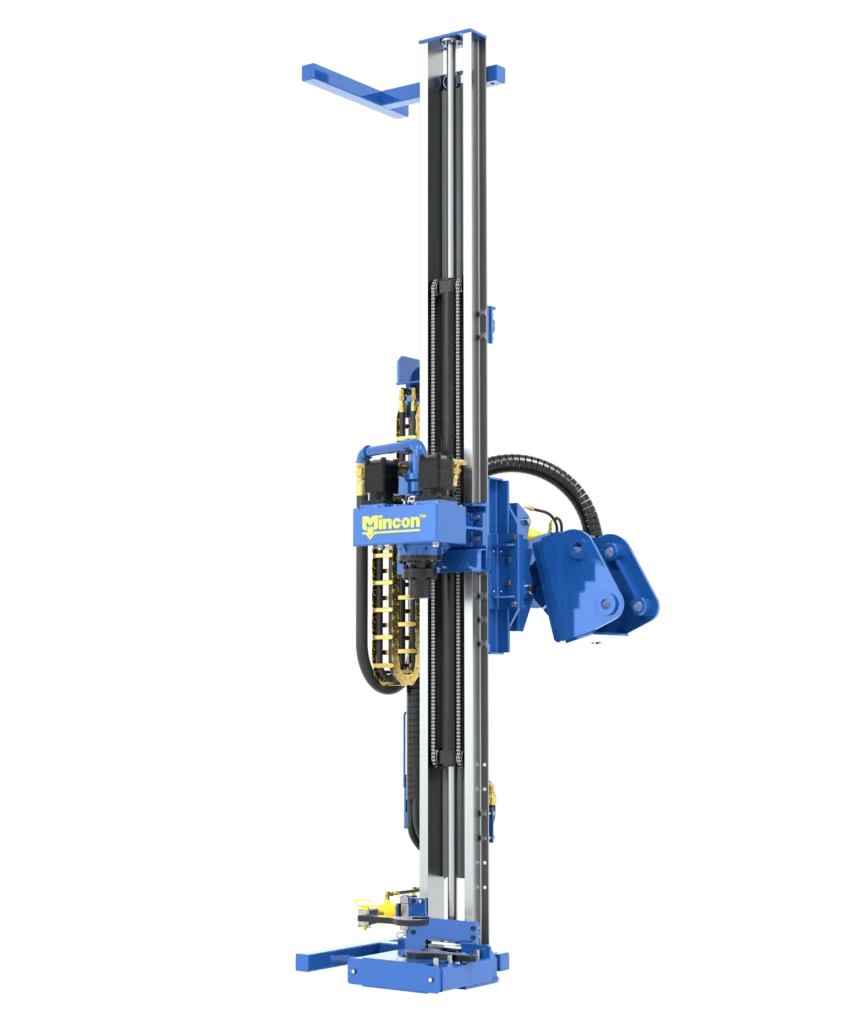

M112 Drill Mast Attachment
The Rock Drill M112 Skid Steer Drill Mast Attachment is ideal for dewatering and solar applications. Capable of drilling with augers, helical anchors, ground screws, DTH hammers and mud drilling setups the Rock Drill M112 has 6,600 lbs of pullback for various drilling projects, including solar, foundation and underpinning applications. Also available for excavator attachment.
-
Height
15’ 10″ (4,816 mm)
-
Mast Stroke
11′ 10″ ( 3,600 mm)
-
Max Pullback
6,000 lbs (2,722 kg)
-
Weight (mast only)
1,452 lbs (650 kg)
- Power & Hydraulics
- Dimensions
- Rotary Head - JT104
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | 206 bar |
| Max Flow Rate | 34 gal/min | 128 L/min |
| Max Pullback / Pushdown | 6,000 lb | 2,722 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 15' 10" | 4,816 mm |
| Mast Stroke | 11' 10" | 3,600 mm |
| Width | 60" | 1,519 mm |
| Weight* (excl. hydraulic hoses) | 1,452 lb | 650 kg |
| Attachment Type | Excavator / Skid Steer |
| Description | Imperial | Metric |
|---|---|---|
| Option 1 | ||
| Max Torque | 5,040 ft-lbs | 6,840 Nm |
| Max Speed | 53 rpm | |
| Max Speed | Variable | |
| *Depending on options. | ||
| Option 2 | ||
| Max Torque | 2,520 ft-lbs | 3,420 Nm |
| Max Speed | 53 rpm | 106 rpm |
| Max Speed | Variable | |
| *Depending on options. |
-
/ 01
Did you know?
Did you know?
You can save time and increase productivity by fitting the M112 Drill Mast with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
-
/ 02
Did you know?
Did you know?
The Rock Drill M112 Drill Mast Attachment’s mount plate for excavators or skid steers can be customized to integrate seamlessly with your carrier machine. Simply connect 2-hoses for pressure and return flow on the carrier machine’s auxiliary lines and you can start drilling.
Solar+
Ready for pre-drilling rock or running ground screws.
Power+
High torque drill heads available for rock drilling & more.
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Built For Drillers, By Drillers
Our drill units are engineered to reduce maintenance and increase operational simplicity. This approach results in stronger components and equipment that lasts longer.
Mincon’s integrated drilling solutions give you the efficiency you need to grow your business, with the flexibility to diversify it and lower your long- term equipment costs. With lower maintenance requirements and a growing network of service and support partners, our integrated drilling solutions help simplify equipment ownership for your business.
-
