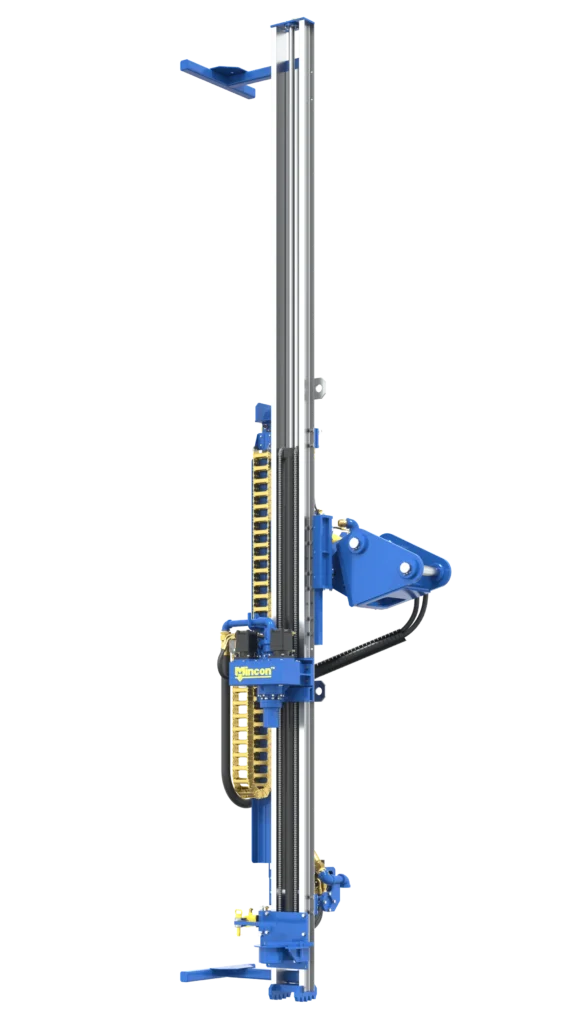

M120 Excavator Drill Mast Attachment
The Rock Drill M120 Drill Mast Attachment for excavators is ideal for pre-drilling hard rock for solar, dewatering and micropile applications. Capable of drilling with augers, helical anchors, ground screws, DTH hammers and mud drilling setups the M120 Drill Mast Attachment has 6,600 lbs of pullback for advanced drill projects, including foundation and underpinning applications. For excavator attachment only.
-
Height
23′ 10″ (7,247 mm)
-
Mast Stroke
20′ (6,100 mm)
-
Max Pullback
6,000 lbs (2,722 kg)
-
Weight (mast only)
2,236 lbs (1,014 kg)
- Power & Hydraulics
- Dimensions
- Rotary Head Options
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | 206 bar |
| Max Flow Rate | 34 gal/min | 128 L/min |
| Max Pullback / Pushdown | 6,000 lb | 2,722 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 23' 10" | 7,247 mm |
| Mast Stroke | 20' | 6,100 mm |
| Width | 60" | 1,519 mm |
| Weight* (excl. hydraulic hoses) | 2,236 lbs | 1,014 kg |
| Attachment Type | Excavator Only |
| Description | Imperial | Metric |
|---|---|---|
| Max Torque | 5,100 ft-lb | 6,915 Nm |
| Max Speed | 100 rpm | |
| Speed Control | Variable | |
| *Depending on options. |
-
/ 01
Did you know?
Did you know?
You can save time and increase productivity by fitting the M120 Drill Mast with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
-
/ 02
Did you know?
Did you know?
The Rock Drill M120 Drill Mast Attachment’s mount plate for excavators can be customized to integrate seamlessly with your carrier machine. With a simple 2-hose connection for the pressure and return flow on the carrier machines auxiliary hookup, it drilling couldn’t be easier to start drilling. Setups available for dewatering, solar installs and geotechnical drilling.
3
Drill Head Options
Only 2
Hose Connections
+++
Skid Steer or Excavator Mounts
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Skid Steer & Excavator Attachments

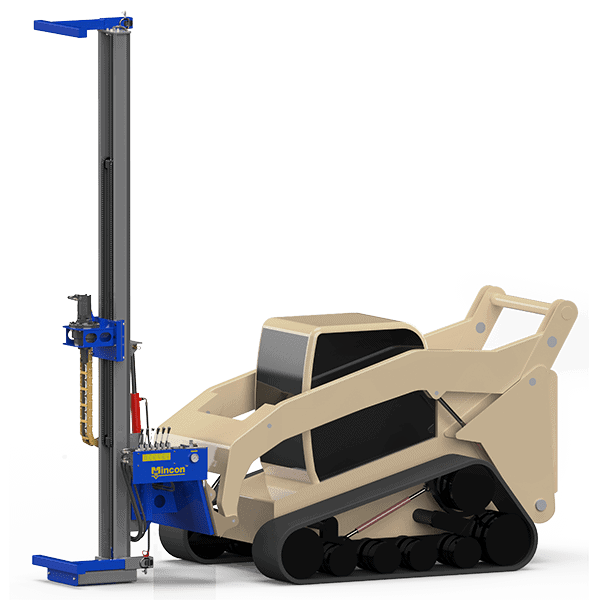

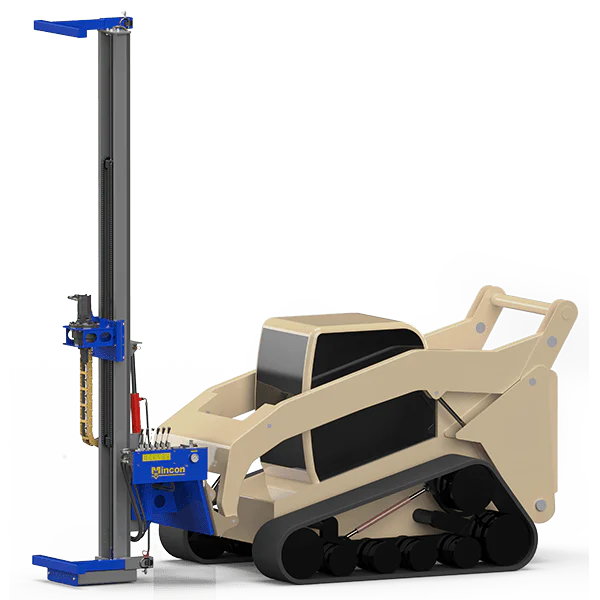

The Rock Drill M120 drill mast and M112 drill mast attachments offer options for excavator or skid steer attachment respectively. Mount plates attached to the rear of the drill mast allow for quick attachment / pickup by the carrier machine.
- Universal skid steer plate fits most skid steer models
- Excavator mounts built to suit your excavator
- Simple 2-hose connection to auxiliary ports on carrier machine
- Connect / disconnect in seconds with included T-Leg system
-
