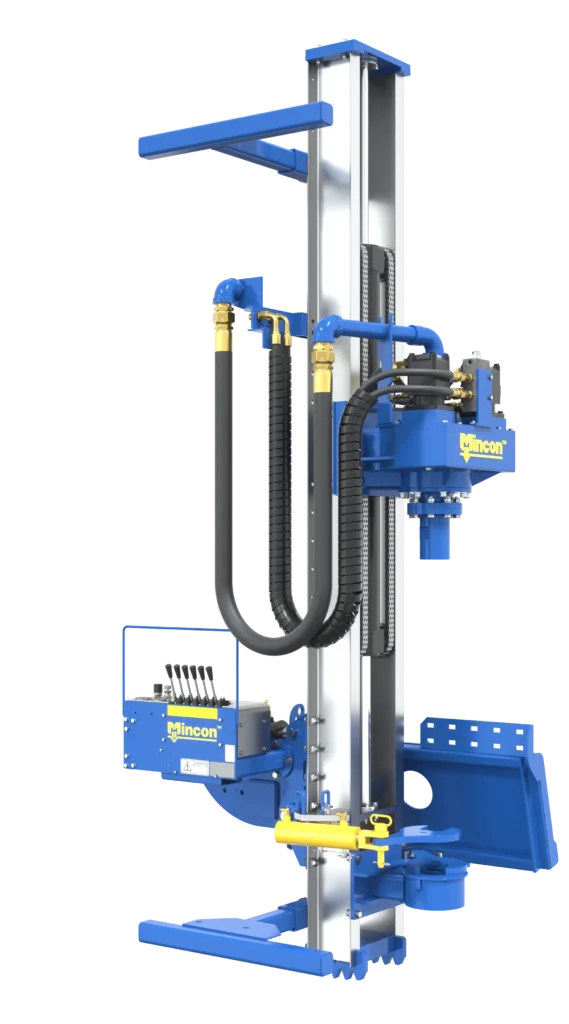

M207 Drill Mast Attachment
The Rock Drill M207 uses 5 ft (2m) drill rods with the high torque JT200 Series drill heads for geothermal, micro piling and foundation applications. With setups for mud, air and geotechnical drilling the M207 is a powerful drill attachment for skid steers and excavators. A shorter mast version (4’ 7” stroke) is available for low-headroom drill sites. Configurations are available for 18” OD boreholes with DTH hammers or augers.
-
Height
11′ 4″ (3,358 mm)
-
Mast Stroke
7′ 10″ (2,388 mm)
-
Max Pullback
22,000 lb (9,979 kg)
-
Weight (mast only)
2,420 lb (1,110 kg)
- Power & Hydraulics
- Dimensions:
- Rotary Head – JT200 Series:
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | (206 bar) |
| Max Flow Rate | 34 gal/min | 128 L/min |
| Max Pullback / Pushdown | 22,000 lb | 9,979 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 11' 4" | 3,358 mm |
| Mast Stroke | 7' 10" | 2,388 mm |
| Width | 52" | 1,321 mm |
| Weight* (excl. hydraulic hoses) | 2,420 lb | 1,110 kg |
| Attachment Type | Excavator / Skid Steer |
| Description | Imperial | Metric |
|---|---|---|
| Max Torque | 10,595 lb-ft | 14,230Nm |
| Max Speed | 204 rpm | |
| Speed Control | Variable | |
| *Depending on options |
-
/ 01
Did you know?
Did you know?
You can save time and increase productivity on Solar pre-drilling projects by fitting the M207 Drill Mast with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
7ft+
Total Strokes
O2
Hose Connections
+++
Customized Mount Plates
-
/ 02
Did you know?
Did you know?
The Rock Drill M207 Drill Mast Attachment’s mount plate for excavators can be customized to integrate seamlessly with your carrier machine. With a simple 2-hose connection for the pressure and return flow on the carrier machines auxiliary hookup, it drilling couldn’t be easier to start drilling. Watch the larger Rock Drill M220 video to learn more about the M207’s capabilities.
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Efficiency Engineered

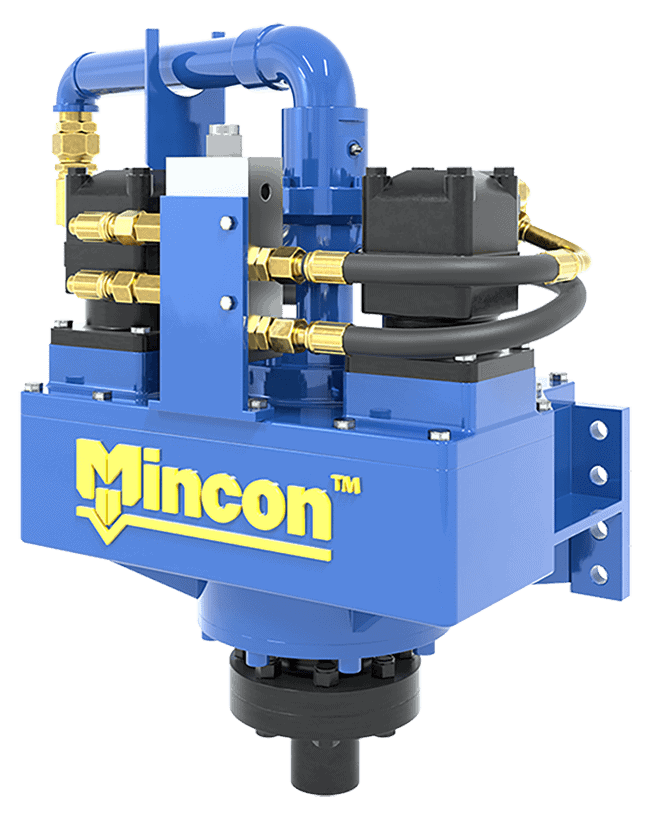

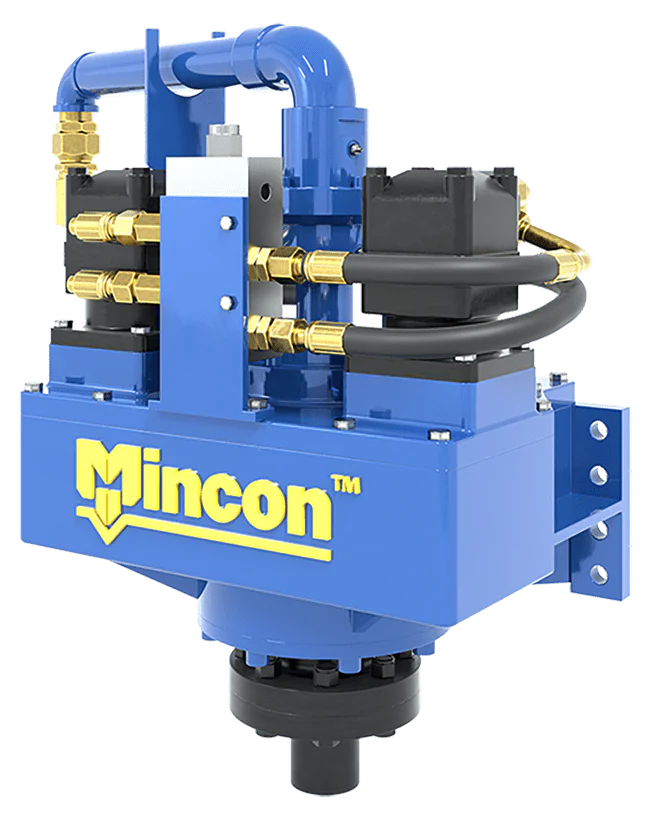

The JT200 Series Drill Head was first engineered and built in 1992 for high torque drilling applications. To reduce wear and breakdowns the JT200 drill head was built with a solid main shaft. This increased it’s durability and it has since stood up to some of the toughest drilling conditions in the world.
Exchangeable motors offer various torque / rpm combinations
Hardened internal components last longer in production drilling applications
-
