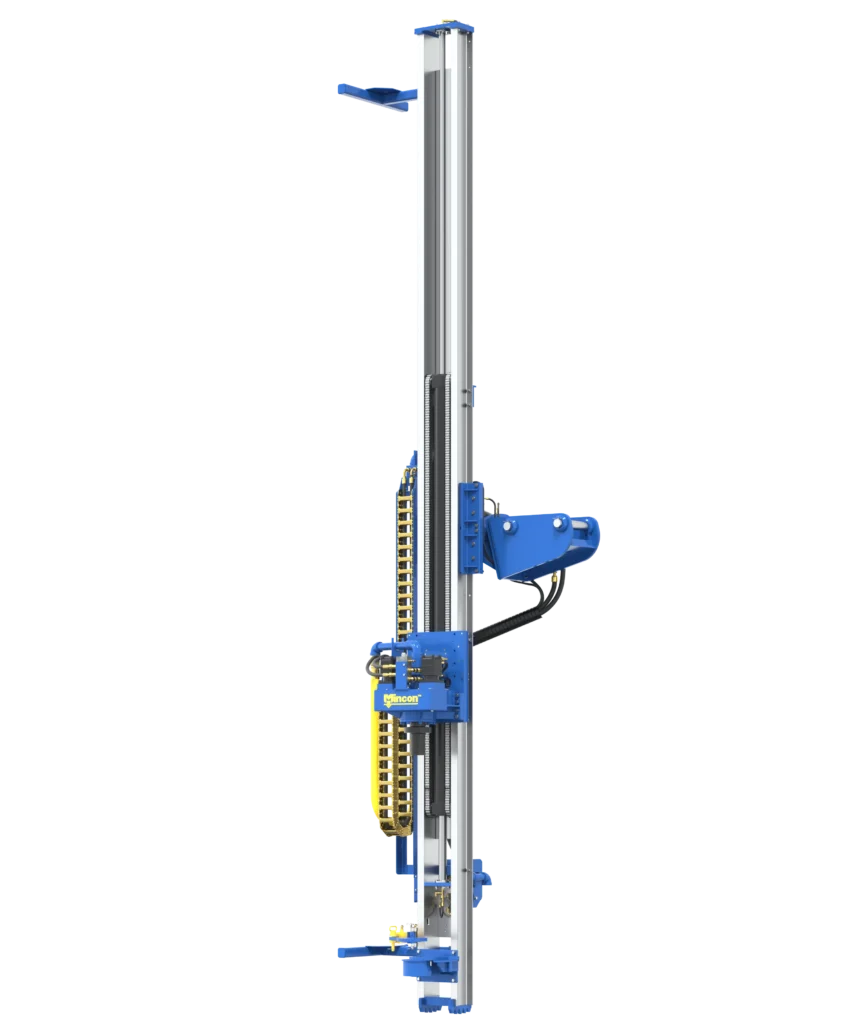

M220 Excavator Mast Attachment
The M220 is ideal for micropiling, foundation, pre-drilling hard rock and solar applications. Capable of drilling with augers, helical anchors, ground screws, DTH hammers and mud drilling setups the M220 connects to the carrier machine auxiliary hydraulic ports and can be operated via the main control panel on the drill mast or the optional remote control pack.
-
Height
23′ 10″ (7,265 mm)
-
Mast Stroke
20’ (6,096 mm)
-
Max Pullback
22,000lbs (9,979 kg)
-
Weight (mast only)
3,652 lb (1,660 kg)
- Power & Hydraulics
- Dimensions
- Rotary Head – JT200 Series
| Description | Imperial | Metric |
|---|---|---|
| Max System Pressure | 3,000 psi | 206 bar |
| Max Flow Rate | 34 gal/min | 128 L/min |
| Max Pullback / Pushdown | 22,000 lb | 9,979 kg |
| Description | Imperial | Metric |
|---|---|---|
| Mast Height | 23' 10" | 7,265 mm |
| Mast Stroke | 20' | 6,096 mm |
| Width | 51" | 1,303 mm |
| Weight* (excl. hydraulic hoses) | 3,652 lb | 1,660 kg |
| Attachment Type | Excavator Only |
| Description | Imperial | Metric |
|---|---|---|
| Max Torque | 10,595 lb-ft | 14,230Nm |
| Max Speed | 204 rpm | |
| Speed Control | Variable | |
| *Depending on options |
-
/ 01
Did you know?
Did you know?
The M220 Drill Mast Attachment’s mount plate for excavators can be customized to integrate seamlessly with your carrier machine. With a simple 2-hose connection for the pressure and return flow on the carrier machines auxiliary hookup, it drilling couldn’t be easier to start drilling.
20ft
Total Strokes
Only 2
Hose Connections
+++
Customized Mount Plates
-
/ 02
Did you know?
Did you know?
You can save time and increase productivity on Solar projects by fitting the M220 Drill Mast with Trimble® Groundworks Machine Control Systems. Real-time GPS location reduces errors and improves safety, lowering costs for faster project completion.
-
/ 03
Need a Tooling Package?
Need a Tooling Package?
We build complete drilling packages for almost any application, including hard-rock drilling using our highly efficient DTH hammers. We also offer dewatering drilling packages, and pile driver setups for solar applications with our powerful M2-PD Series Pile Driver Masts.
Innovative Simplicity
With their own practical drilling experience the Mincon Rock Drill engineers used innovative simplicity to design a series of drilling units that were easy to maintain and service. This engineering methodology designed a series of machines that are built to last:
- Engineered simplicity also means components are stronger and more durable.
- Maintenance requirements are reduced with fewer wearable items and moving parts.
- Off-the-shelf parts and spares can be utilized from local suppliers, Lowering maintenance and operating costs.
-
